FAG F-680538.RN

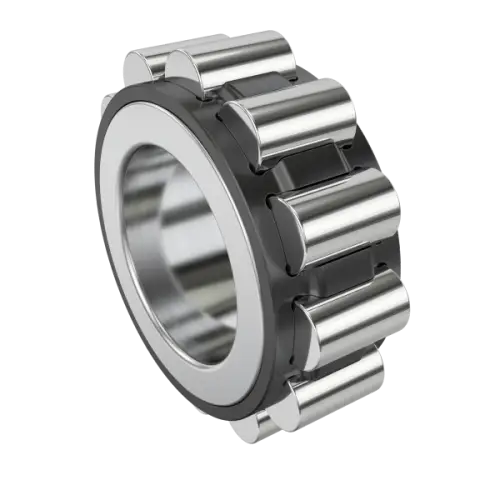

Special bearing RSL with cage, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL1830
(BRAND)：FAG
(Availability)：In Stock

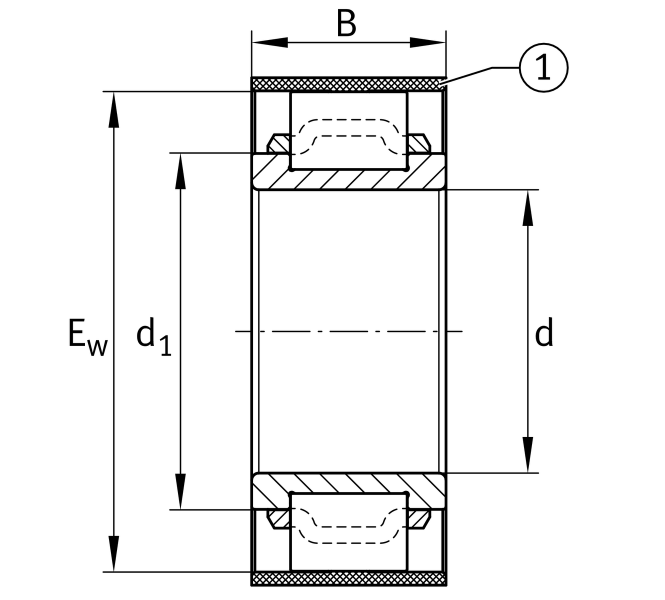

Main Dimensions & Performance Data
d
80 mm
Bore diameter
Ew
116.99 mm
B
34 mm
Width
Cr
154,000 N
Basic dynamic load rating, radial
C0r
163,000 N
Basic static load rating, radial
Cur
30,500 N
Fatigue load limit, radial
CG
9,200 1/min
Limiting speed
≈m
0.92 kg
Weight

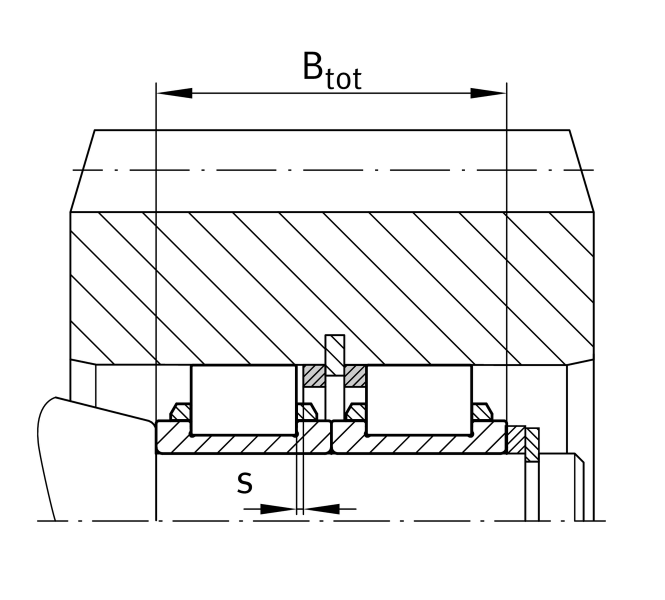

Mounting dimensions
da min
94.5 mm
Minimum diameter shaft shoulder
