FAG F-683690.RN

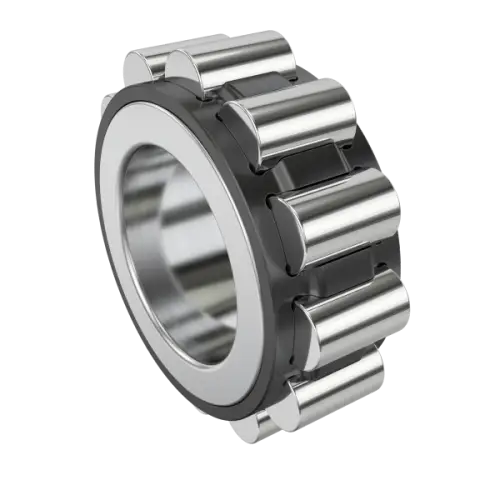

Special bearing RSL with cage, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL1830
(BRAND)：FAG
(Availability)：In Stock

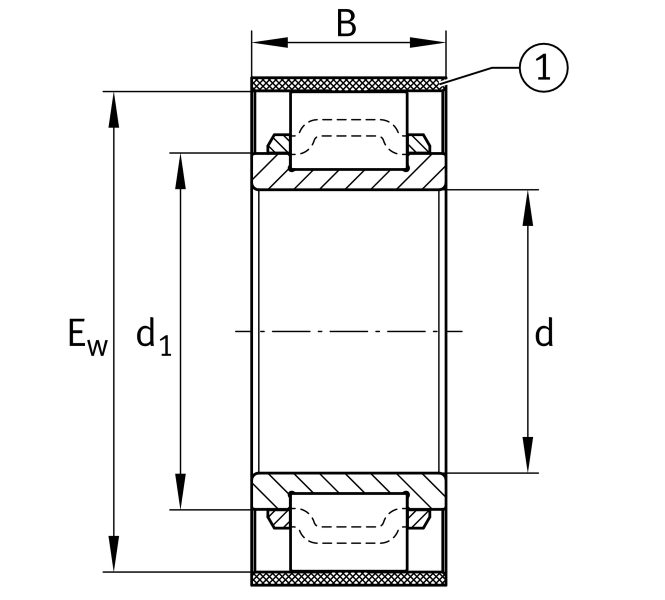

Main Dimensions & Performance Data
d
60 mm
Bore diameter
Ew
86.74 mm
B
26 mm
Width
Cr
100,000 N
Basic dynamic load rating, radial
C0r
107,000 N
Basic static load rating, radial
Cur
18,100 N
Fatigue load limit, radial
CG
12,900 1/min
Limiting speed
≈m
406.78 g
Weight

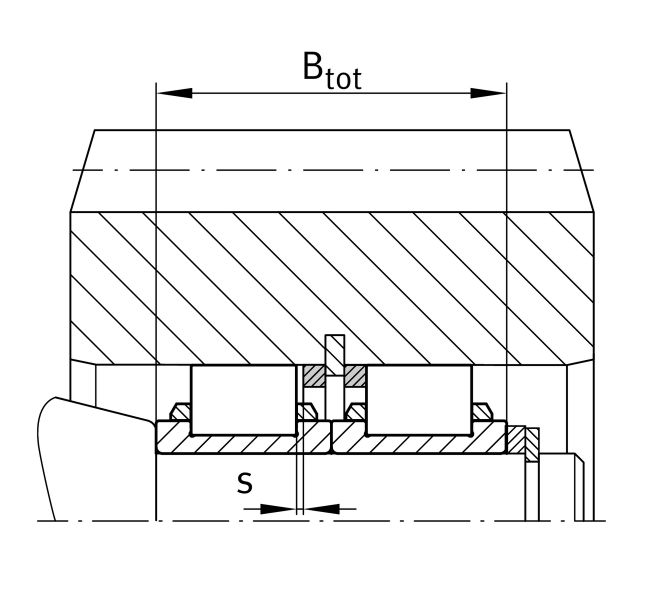

Mounting dimensions
da min
71 mm
Minimum diameter shaft shoulder
