FAG F-683691.RN

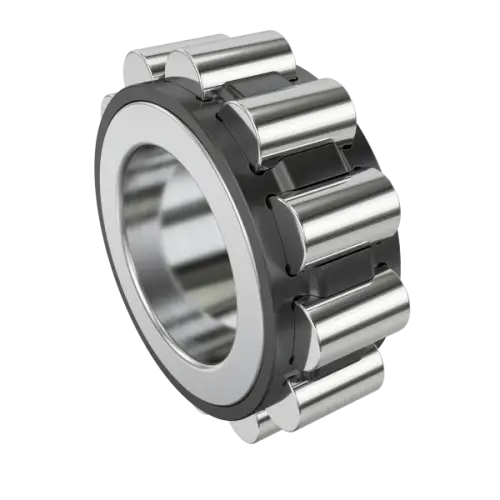

Special bearing RSL with cage, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL1830
(BRAND)：FAG
(Availability)：In Stock

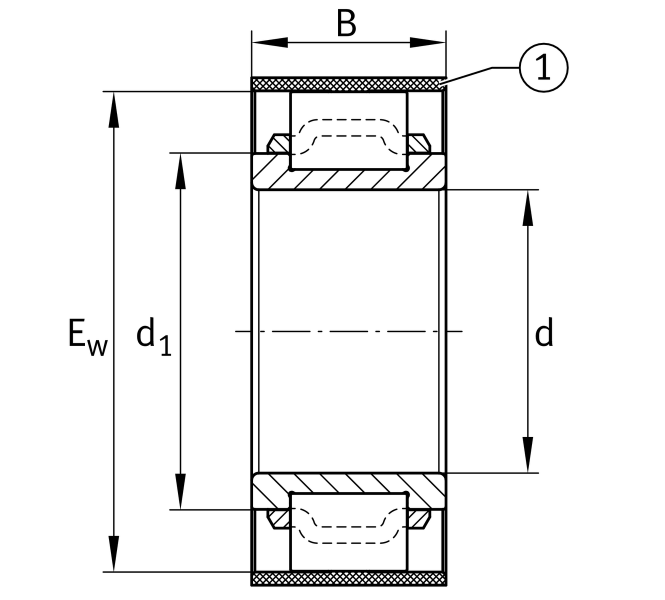

Main Dimensions & Performance Data
d
65 mm
Bore diameter
Ew
93.09 mm
B
26 mm
Width
Cr
107,000 N
Basic dynamic load rating, radial
C0r
121,000 N
Basic static load rating, radial
Cur
20,400 N
Fatigue load limit, radial
CG
12,100 1/min
Limiting speed
≈m
73.58 g
Weight

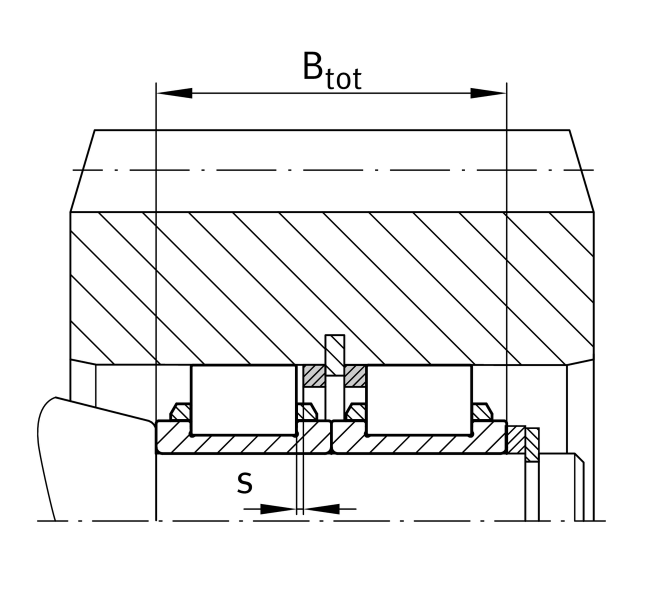

Mounting dimensions
da min
77.5 mm
Minimum diameter shaft shoulder
