FAG F-802006.TR4-D1

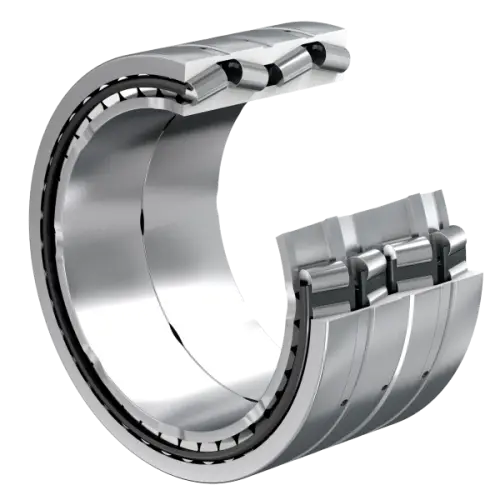

Tapered roller bearings, four-row, TQO-arrangement, opened design
(BRAND)：FAG
(Availability)：In Stock

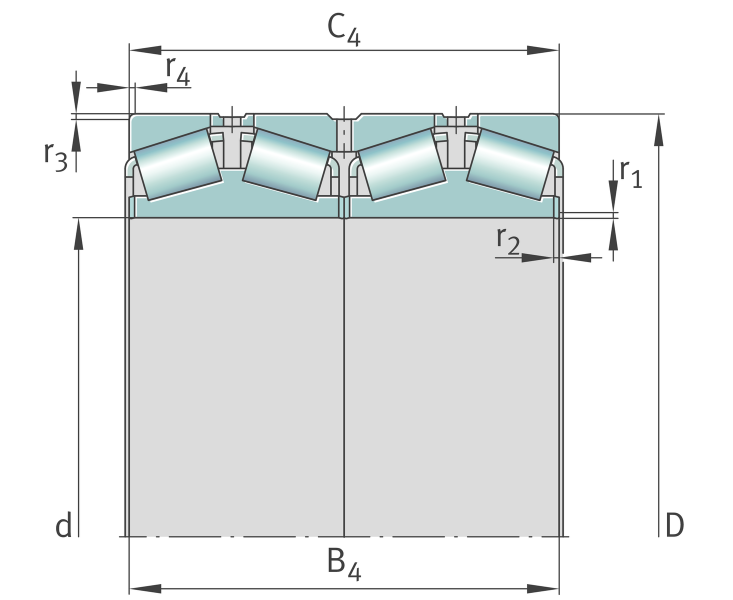

Main Dimensions & Performance Data
d
482.6 mm
Bore diameter
D
615.95 mm
Outside diameter
B4
330.2 mm
Width of bearing inside
C4
330.2 mm
Width of bearing outside
Cr
7,000,000 N
Basic dynamic load rating, radial
C0r
14,000,000 N
Basic static load rating, radial
Cur
1,300,000 N
Fatigue load limit, radial
≈m
246 kg
Weight
