FAG F-802117.TR4-D1

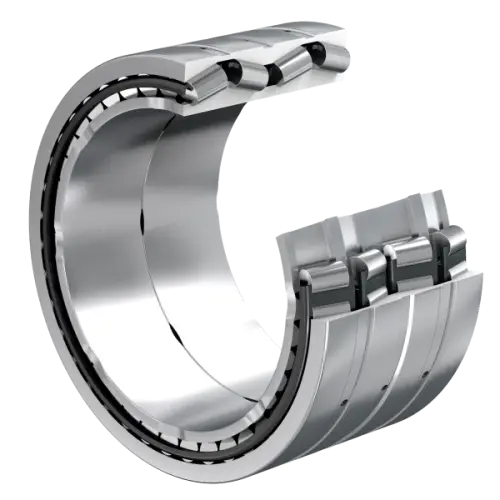

Tapered roller bearings, four-row, TQO-arrangement, opened design
(BRAND)：FAG
(Availability)：In Stock

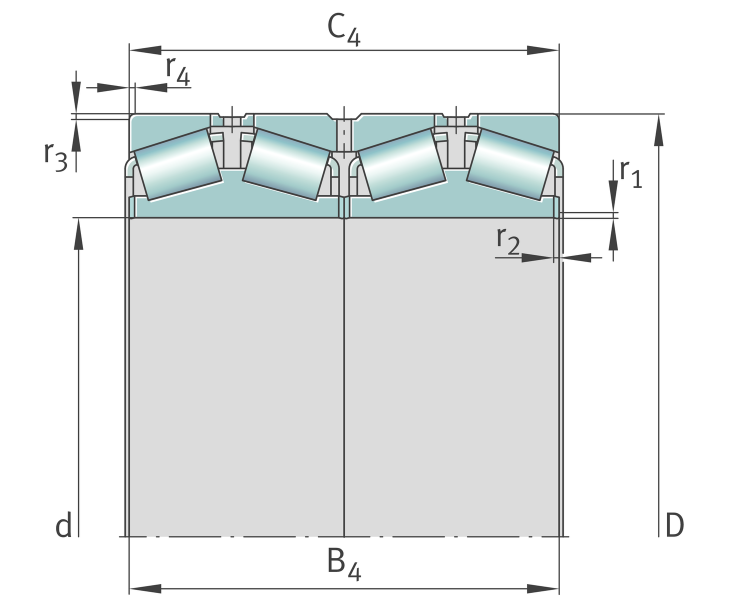

Main Dimensions & Performance Data
d
177.8 mm
Bore diameter
D
247.65 mm
Outside diameter
B4
192.088 mm
Width of bearing inside
C4
192.088 mm
Width of bearing outside
Cr
1,400,000 N
Basic dynamic load rating, radial
C0r
2,850,000 N
Basic static load rating, radial
Cur
300,000 N
Fatigue load limit, radial
≈m
28.3 kg
Weight
