FAG F-802147.TR4-D1

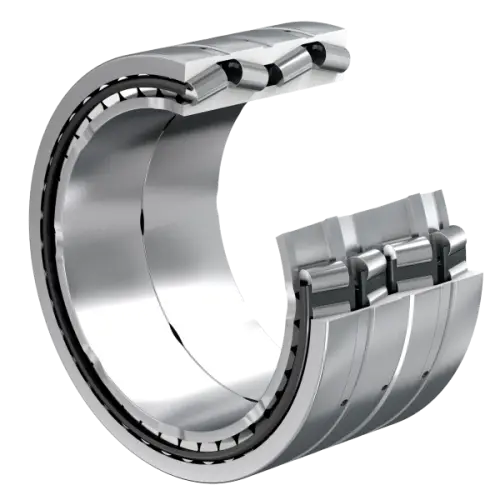

Tapered roller bearings, four-row, TQO-arrangement, opened design
(BRAND)：FAG
(Availability)：In Stock

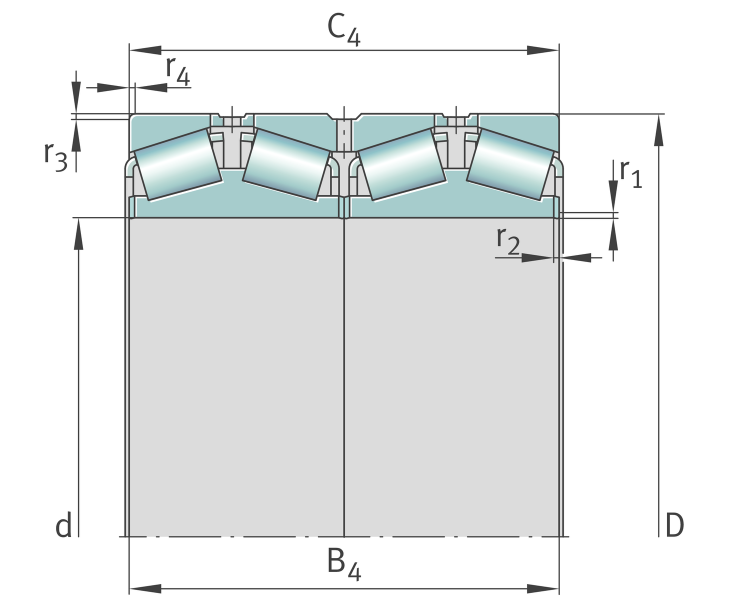

Main Dimensions & Performance Data
d
646.112 mm
Bore diameter
D
857.25 mm
Outside diameter
B4
542.925 mm
Width of bearing inside
C4
542.925 mm
Width of bearing outside
Cr
13,900,000 N
Basic dynamic load rating, radial
C0r
33,500,000 N
Basic static load rating, radial
Cur
2,850,000 N
Fatigue load limit, radial
≈m
854 kg
Weight
