FAG F-802198.TR4-D1

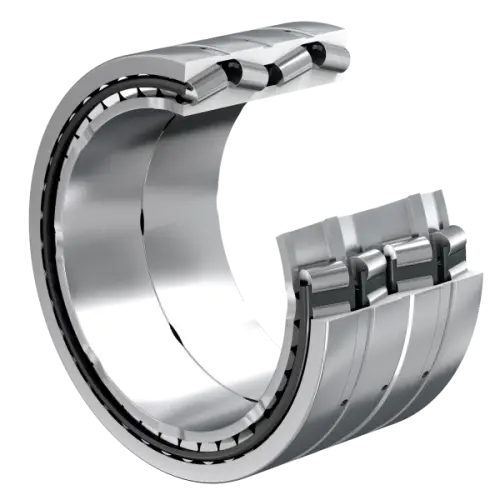

Tapered roller bearings, four-row, TQO-arrangement, opened design
(BRAND)：FAG
(Availability)：In Stock

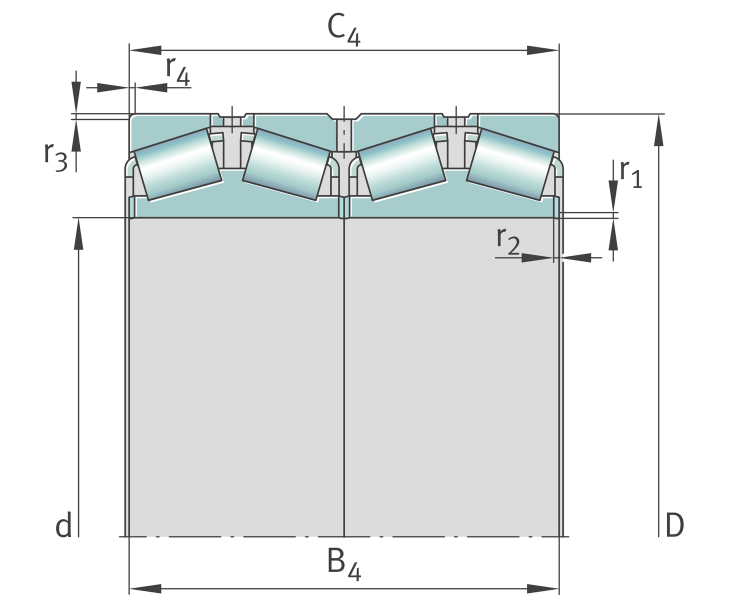

Main Dimensions & Performance Data
d
585.788 mm
Bore diameter
D
771.525 mm
Outside diameter
B4
479.425 mm
Width of bearing inside
C4
479.425 mm
Width of bearing outside
Cr
10,200,000 N
Basic dynamic load rating, radial
C0r
25,500,000 N
Basic static load rating, radial
Cur
2,200,000 N
Fatigue load limit, radial
≈m
588.8 kg
Weight
