FAG F-802228.TR4-D1

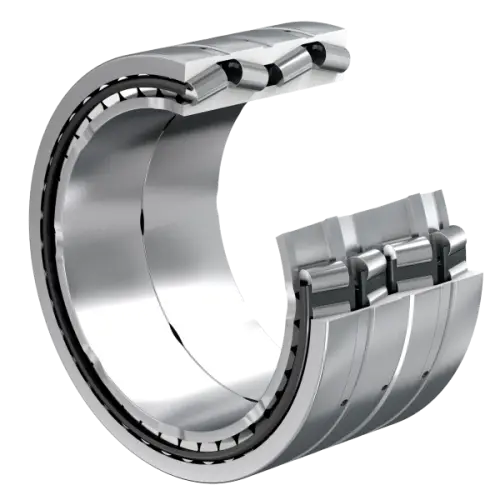

Tapered roller bearings, four-row, TQO-arrangement, opened design
(BRAND)：FAG
(Availability)：In Stock

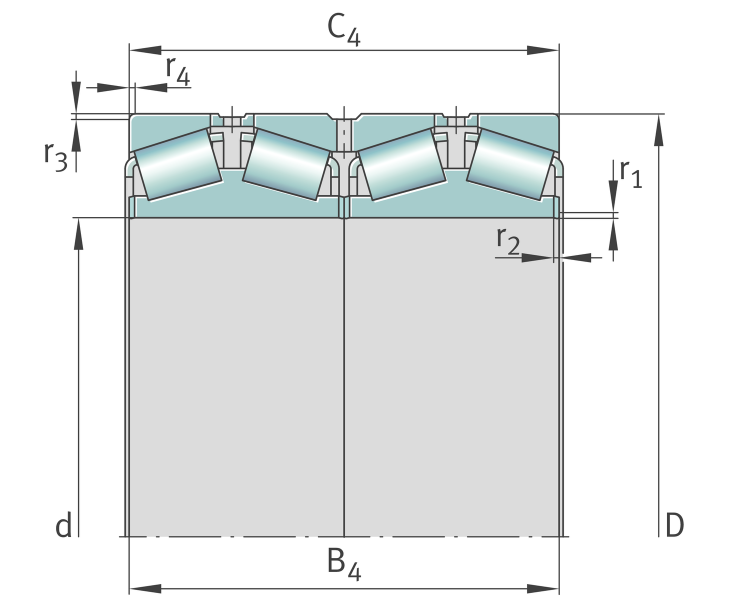

Main Dimensions & Performance Data
d
288.925 mm
Bore diameter
D
406.4 mm
Outside diameter
B4
298.45 mm
Width of bearing inside
C4
298.45 mm
Width of bearing outside
Cr
4,050,000 N
Basic dynamic load rating, radial
C0r
8,200,000 N
Basic static load rating, radial
Cur
870,000 N
Fatigue load limit, radial
≈m
123 kg
Weight
