FAG F-802268.TR4-D1

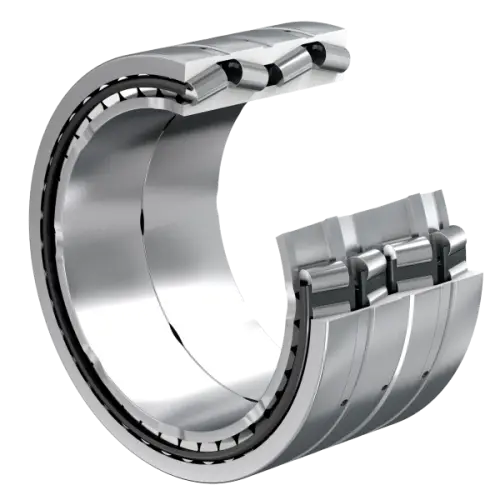

Tapered roller bearings, four-row, TQO-arrangement, opened design
(BRAND)：FAG
(Availability)：In Stock

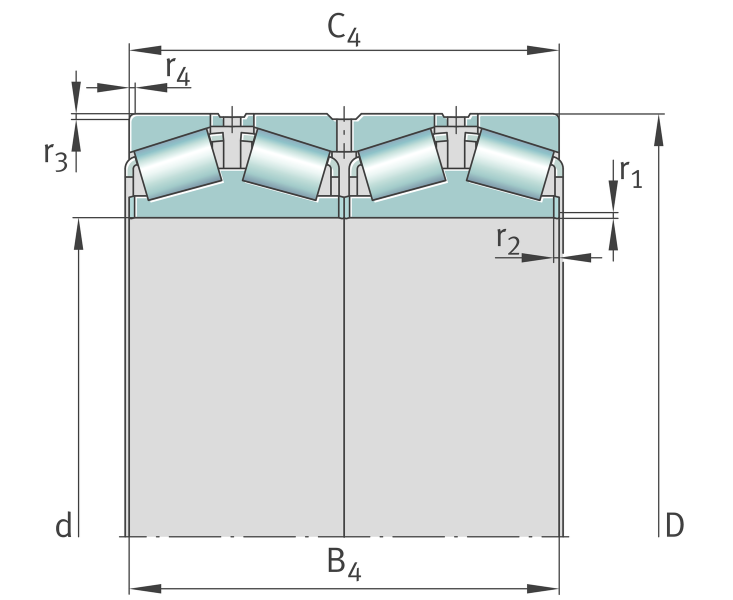

Main Dimensions & Performance Data
d
228.6 mm
Bore diameter
D
311.15 mm
Outside diameter
B4
200.025 mm
Width of bearing inside
C4
200.025 mm
Width of bearing outside
Cr
1,940,000 N
Basic dynamic load rating, radial
C0r
3,850,000 N
Basic static load rating, radial
Cur
370,000 N
Fatigue load limit, radial
≈m
44 kg
Weight
