FAG F-802475.TR4-D1

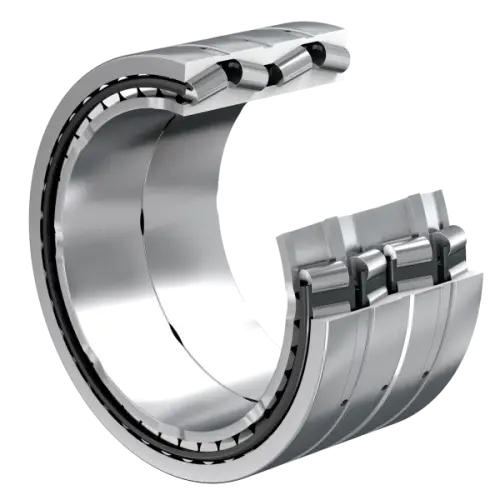

Tapered roller bearings, four-row, TQO-arrangement, opened design
(BRAND)：FAG
(Availability)：In Stock

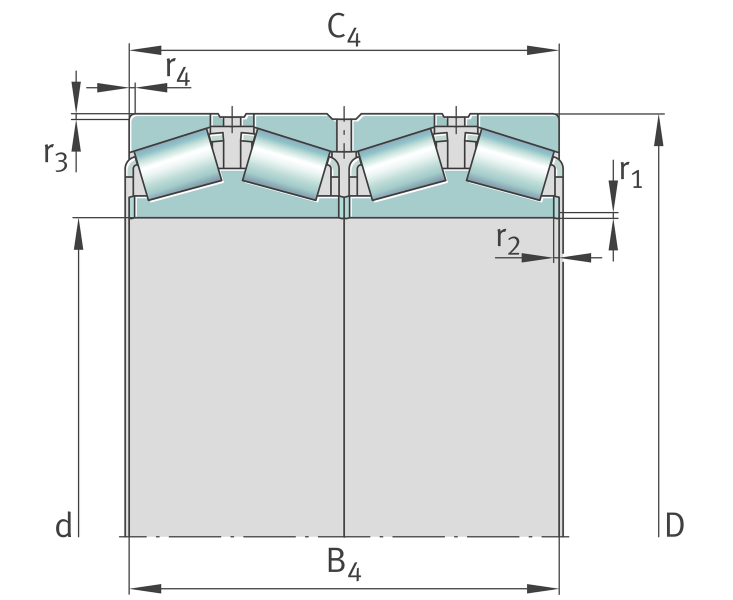

Main Dimensions & Performance Data
d
558.8 mm
Bore diameter
D
736.6 mm
Outside diameter
B4
455.612 mm
Width of bearing inside
C4
457.2 mm
Width of bearing outside
Cr
10,100,000 N
Basic dynamic load rating, radial
C0r
24,700,000 N
Basic static load rating, radial
Cur
2,150,000 N
Fatigue load limit, radial
≈m
522.5 kg
Weight
