FAG F-807332.TR2SK
Tapered Roller Bearings

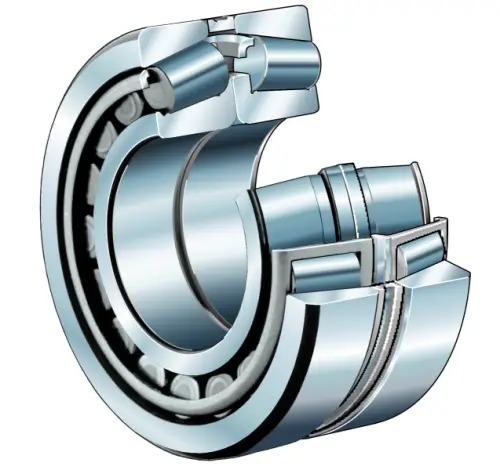

Tapered roller bearing set with different rows, double-row, X-arrangement, opened design
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
280 mm
Outside diameter
2B
124 mm
Inner ring total width
2T
135.75 mm
Outer ring total width
Cr
710,000 N
Basic dynamic load rating, radial
C0r
740,000 N
Basic static load rating, radial
Cr
720,000 N
Basic dynamic load rating, radial, 2nd series
C0r
790,000 N
Basic static load rating, radial, 2nd series
Cur
110,000 N
Fatigue load limit, radial
CG
2,650 1/min
Limiting speed
≈m
38.5 kg
Weight
