FAG HMZ30/500
Shaft Nut
Shaft nut HMZ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

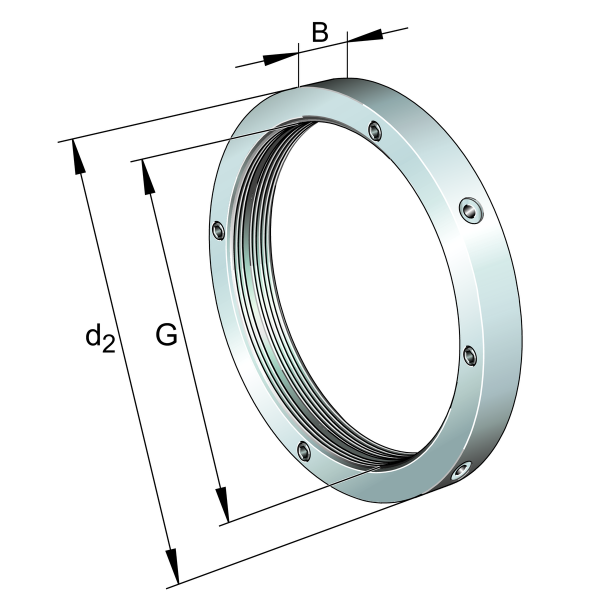

Main Dimensions & Performance Data
G
Tr500X5
Thread
d2
580 mm
Outerside diameter
B
68 mm
Width
≈m
34.6 kg
Weight

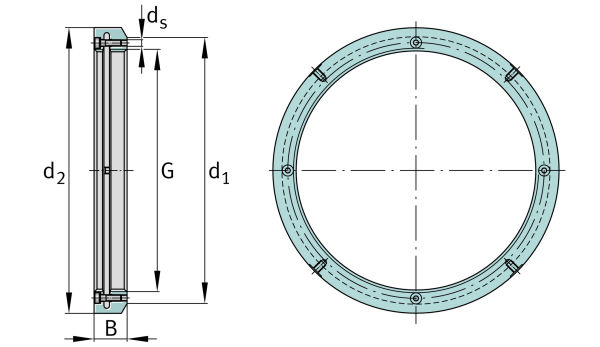

Mounting dimensions
d1
550 mm
Chamfer diameter
ds
M20
Thread locking bolt
