FAG HMZ30/530
Shaft Nut
Shaft nut HMZ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

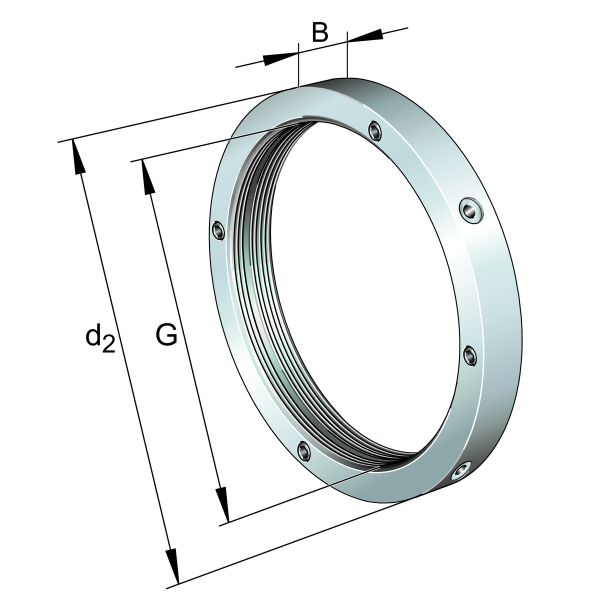

Main Dimensions & Performance Data
G
Tr530X6
Thread
d2
630 mm
Outerside diameter
B
68 mm
Width
≈m
45.7 kg
Weight

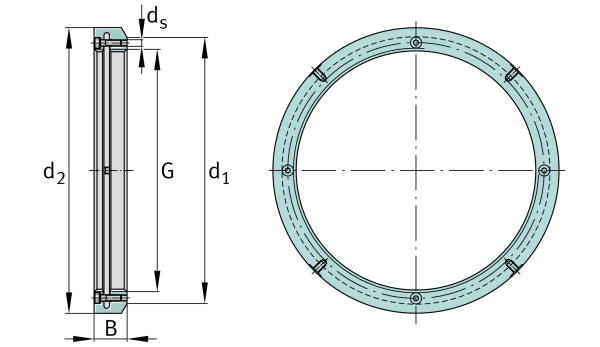

Mounting dimensions
d1
590 mm
Chamfer diameter
ds
M20
Thread locking bolt
