FAG HMZ30/750
Shaft Nut
Shaft nut HMZ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

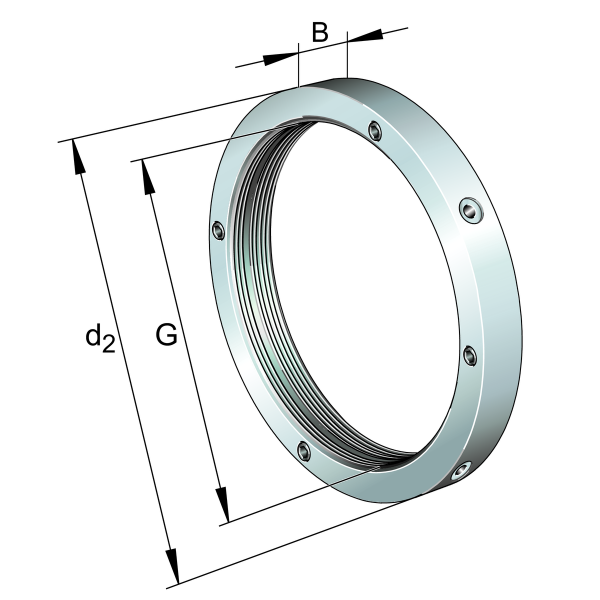

Main Dimensions & Performance Data
G
Tr750X7
Thread
d2
870 mm
Outerside diameter
B
90 mm
Width
≈m
103.2 kg
Weight

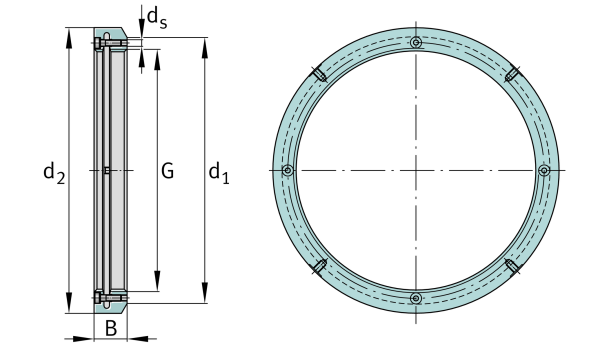

Mounting dimensions
d1
820 mm
Chamfer diameter
ds
M20
Thread locking bolt
