FAG HMZ30/950
Shaft Nut
Shaft nut HMZ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

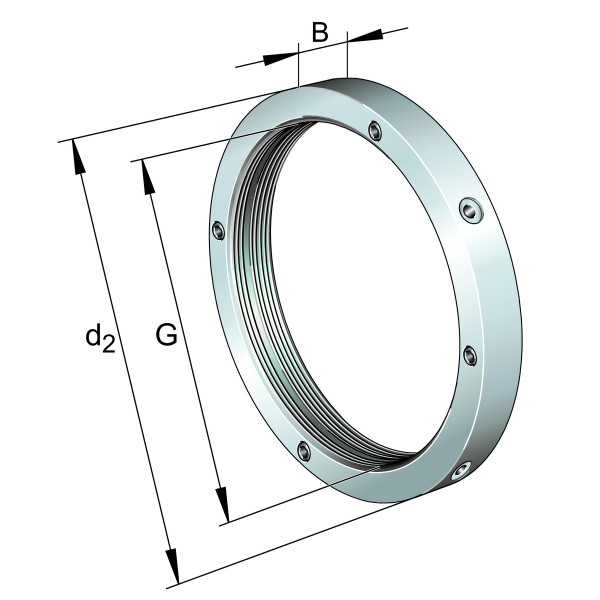

Main Dimensions & Performance Data
G
Tr950X8
Thread
d2
1,080 mm
Outerside diameter
B
100 mm
Width
≈m
156 kg
Weight

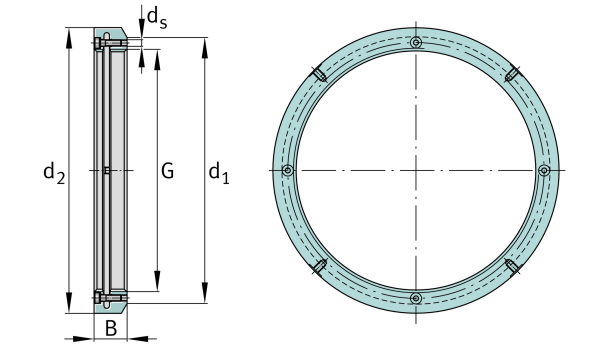

Mounting dimensions
d1
1,025 mm
Chamfer diameter
ds
M24
Thread locking bolt
