FAG JK0S050>A

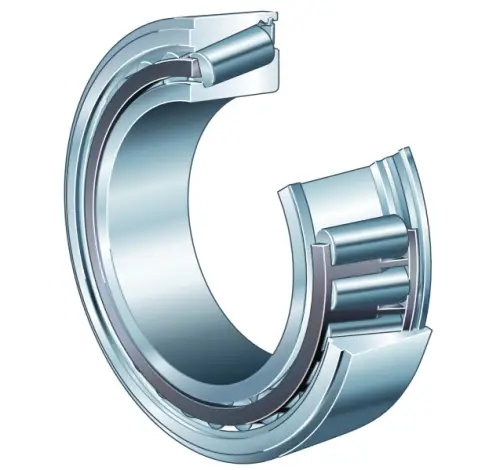

Tapered roller bearings JK0S, integral tapered roller bearings, lip seal on one side, diameter series 0
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
80 mm
Outside diameter
B
22 mm
Width, inner ring
C
21.5 mm
Width, outer ring
Cr
64,000 N
Basic dynamic load rating, radial
C0r
93,000 N
Basic static load rating, radial
Cur
11,400 N
Fatigue load limit, radial
CG
4,050 1/min
Limiting speed
FBR
31,400 N
Load carrying capacity of snap ring connection
12,800 N
Maximum axial clamping force
≈m
405.3 g
Weight

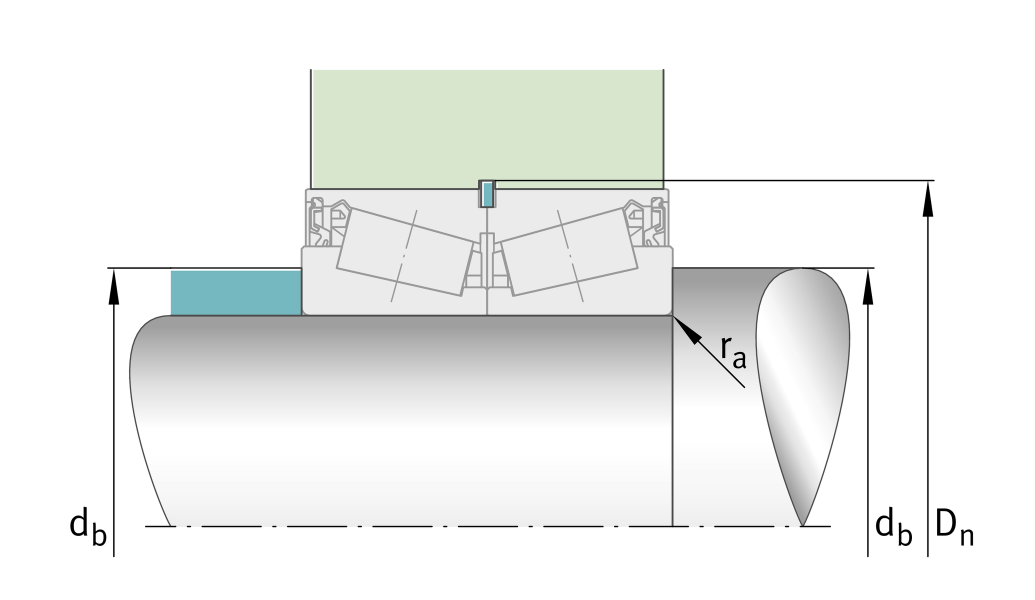

Mounting dimensions
da max
56 mm
Maximum diameter of shaft shoulder
db min
56 mm
Minimum diameter of shaft shoulder
ra max
1 mm
Maximum fillet radius of shaft
Dn
81.8 mm
Groove diameter at housing
u0394Dn
0.22 mm
Upper limit deviation
