FAG JK0S080-A>A

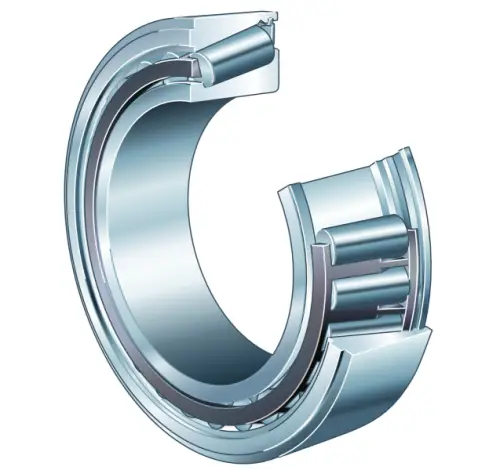

Tapered roller bearings JK0S, integral tapered roller bearings, lip seal on one side, diameter series 0
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

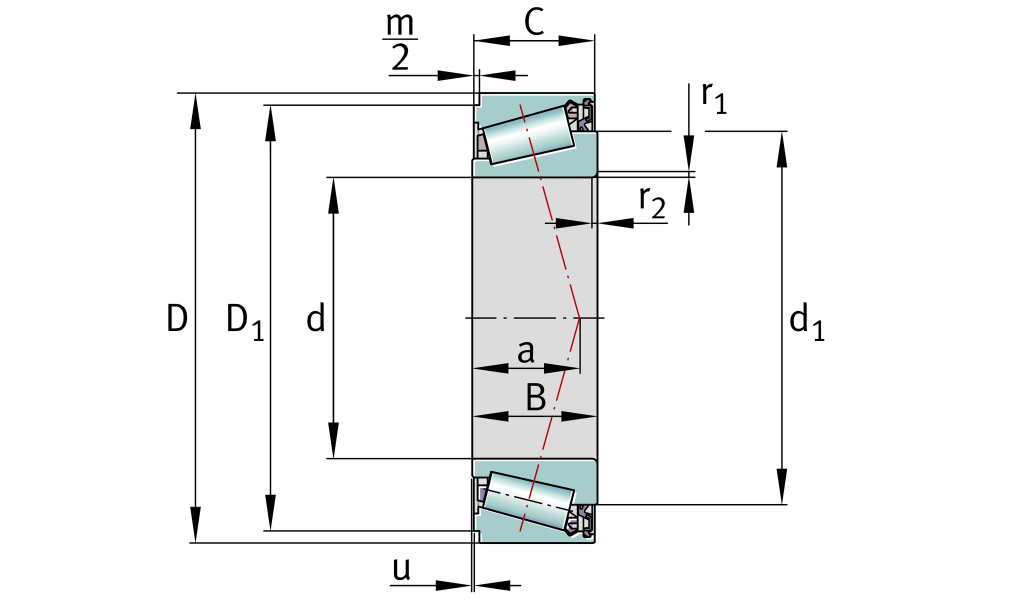

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
125 mm
Outside diameter
B
30 mm
Width, inner ring
C
29.5 mm
Width, outer ring
Cr
137,000 N
Basic dynamic load rating, radial
C0r
211,000 N
Basic static load rating, radial
Cur
26,500 N
Fatigue load limit, radial
CG
2,550 1/min
Limiting speed
FBR
40,200 N
Load carrying capacity of snap ring connection
27,400 N
Maximum axial clamping force
≈m
1.278 kg
Weight

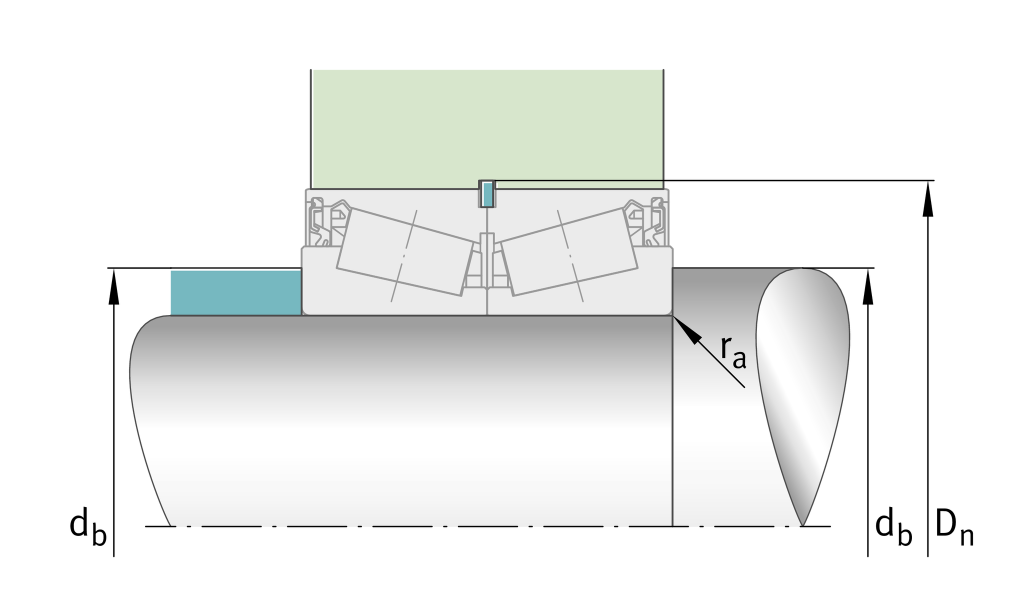

Mounting dimensions
da max
89 mm
Maximum diameter of shaft shoulder
db min
87 mm
Minimum diameter of shaft shoulder
ra max
1.5 mm
Maximum fillet radius of shaft
Dn
127.3 mm
Groove diameter at housing
u0394Dn
0.25 mm
Upper limit deviation
