FAG K231462-232000-B

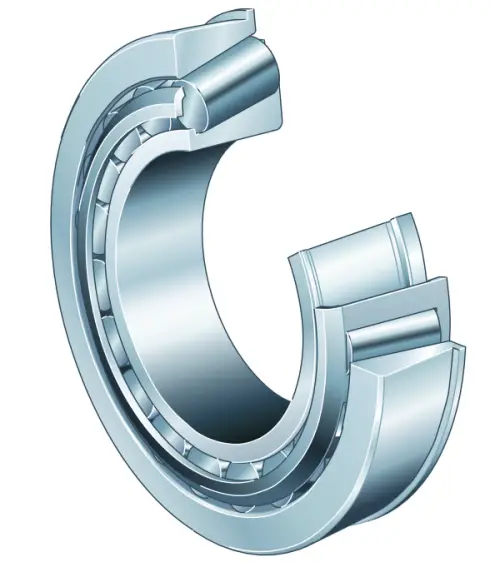

Tapered Roller Bearings
Tapered roller bearings with flange K-Series, in inch sizes, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
371.475 mm
Bore diameter
D
508 mm
Outside diameter
B
66.675 mm
Width, inner ring
C
50.8 mm
Width, outer ring
TF
38.101 mm
Width assembled flange bearing
Cr
940,000 N
Basic dynamic load rating, radial
C0r
1,830,000 N
Basic static load rating, radial
Cur
179,000 N
Fatigue load limit, radial
CG
1,300 1/min
Limiting speed
nϑr
740 1/min
Thermal speed rating
≈m
39 kg
Weight
Mounting dimensions
da max
390 mm
Maximum diameter of shaft shoulder
db min
400 mm
Minimum diameter of shaft shoulder
Da min
476 mm
Minimum diameter of housing shoulder
Db min
483 mm
Minimum diameter of housing shoulder
Ca min
8 mm
Minimum axial space
Cb min
24 mm
Minimum axial space
ra max
6.4 mm
Maximum fillet radius of shaft
rb max
3.3 mm
Maximum fillet radius of housing
