FAG K33889
Tapered roller bearings without outer ring (Cone) K-Series, in inch sizes
(BRAND)：FAG
(Availability)：In Stock

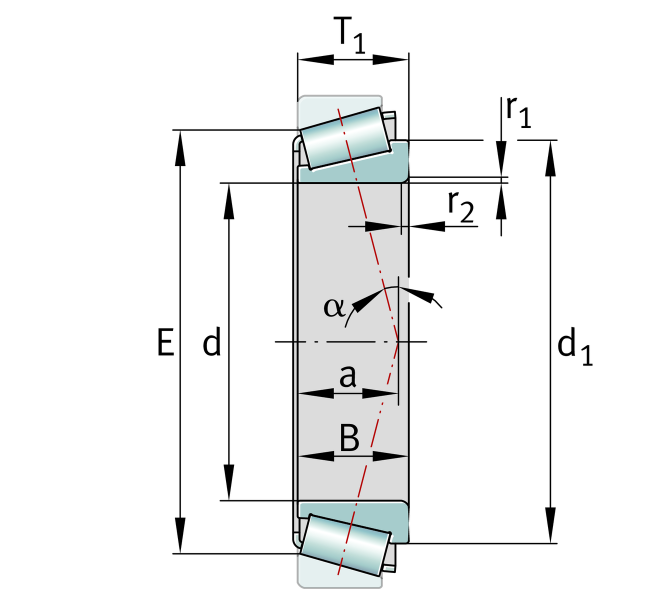

Main Dimensions & Performance Data
d
50.8 mm
Bore diameter
B
28.575 mm
Width, inner ring
Cr
107,000 N
Basic dynamic load rating, radial
C0r
138,000 N
Basic static load rating, radial
Cur
17,500 N
Fatigue load limit, radial
CG
7,500 1/min
Limiting speed
nϑr
5,100 1/min
Thermal speed rating
≈m
0.6 kg
Weight

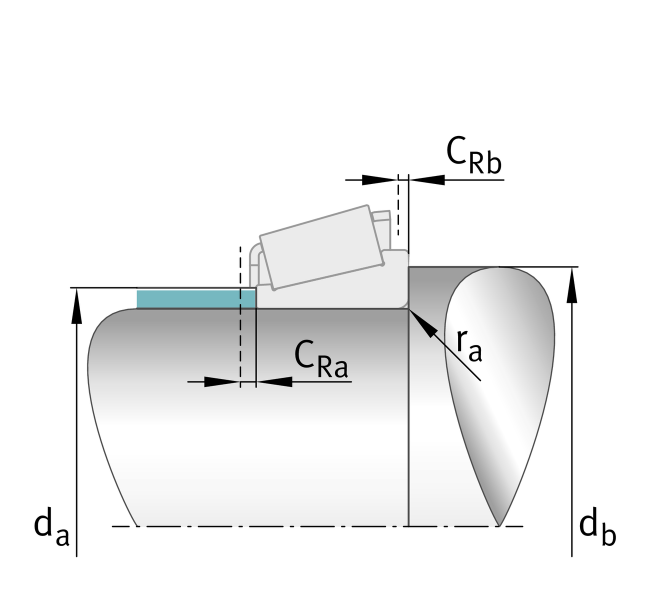

Mounting dimensions
da max
58 mm
Maximum diameter of shaft shoulder
db min
64 mm
Minimum diameter of shaft shoulder
CRa min
4.7 mm
Minimum axial space
CRb max
0 mm
Maximum axial space
ra max
3.6 mm
Maximum fillet radius of shaft
