FAG K387-AS-DY-W61B
Tapered roller bearings without outer ring (Cone) K-Series, in inch sizes
(BRAND)：FAG
(Availability)：In Stock

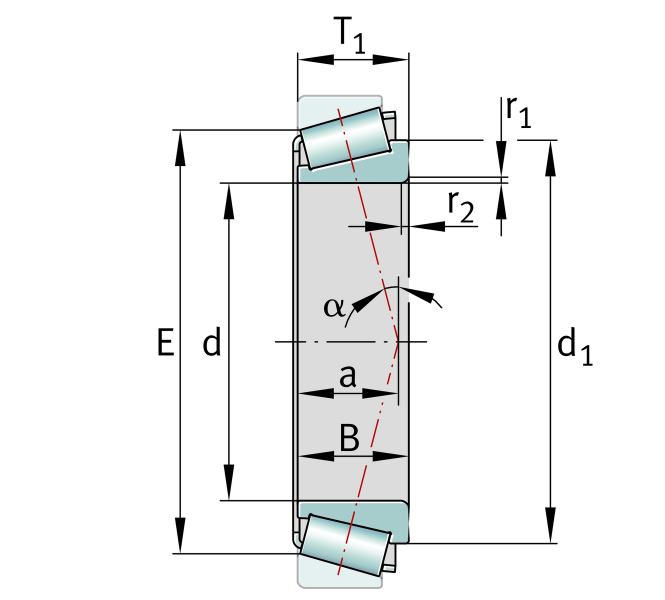

Main Dimensions & Performance Data
d
57.15 mm
Bore diameter
B
21.946 mm
Width, inner ring
Cr
79,000 N
Basic dynamic load rating, radial
C0r
101,000 N
Basic static load rating, radial
≈m
0.403 kg
Weight

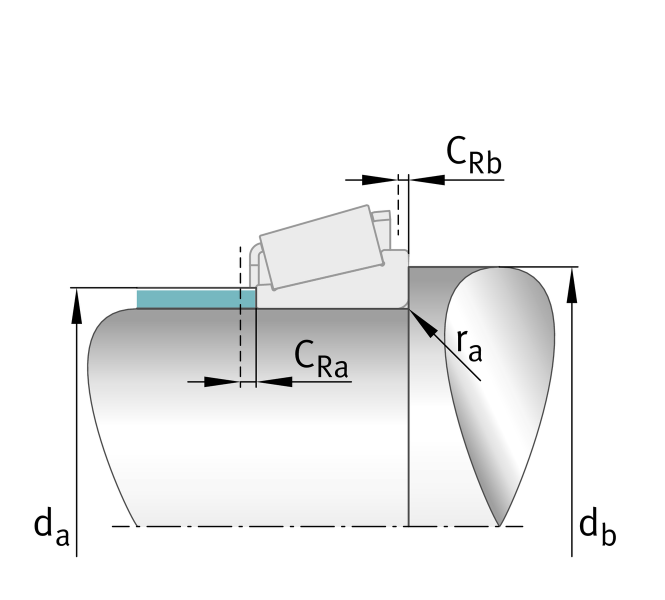

Mounting dimensions
da max
63 mm
Maximum diameter of shaft shoulder
db min
73 mm
Minimum diameter of shaft shoulder
CRa min
3.1 mm
Minimum axial space
CRb max
0.1 mm
Maximum axial space
ra max
5.2 mm
Maximum fillet radius of shaft
