FAG K39235-X-39412-B

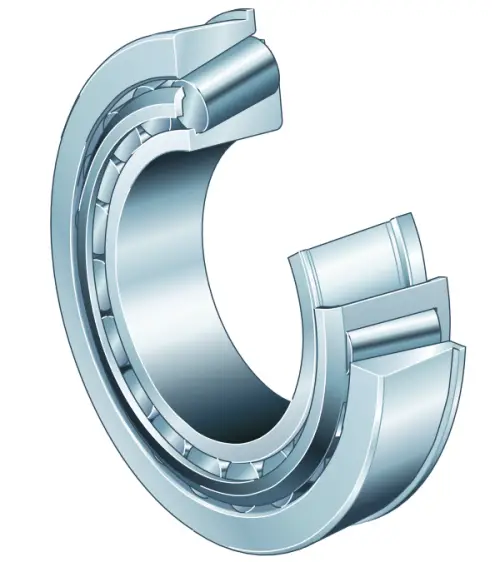

Tapered roller bearings with flange K-Series, in inch sizes, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock

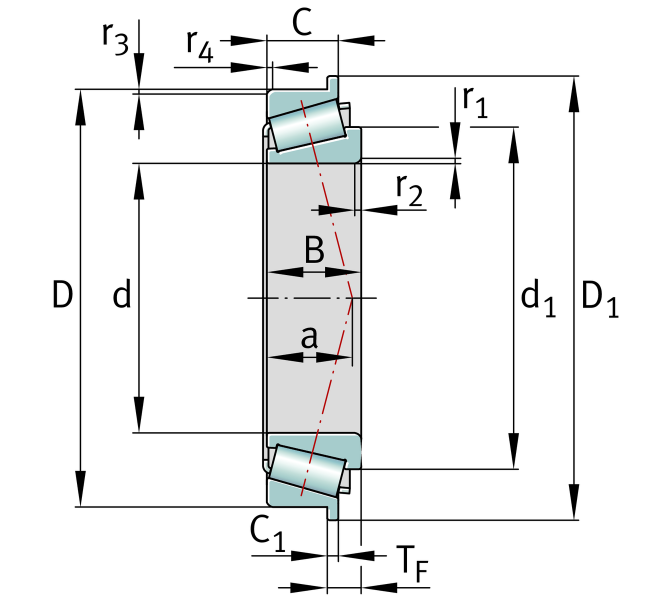

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
104.775 mm
Outside diameter
B
22 mm
Width, inner ring
C
15.875 mm
Width, outer ring
TF
10.32 mm
Width assembled flange bearing
Cr
86,000 N
Basic dynamic load rating, radial
C0r
115,000 N
Basic static load rating, radial
Cur
13,900 N
Fatigue load limit, radial
CG
6,900 1/min
Limiting speed
nϑr
3,900 1/min
Thermal speed rating
≈m
0.763 kg
Weight

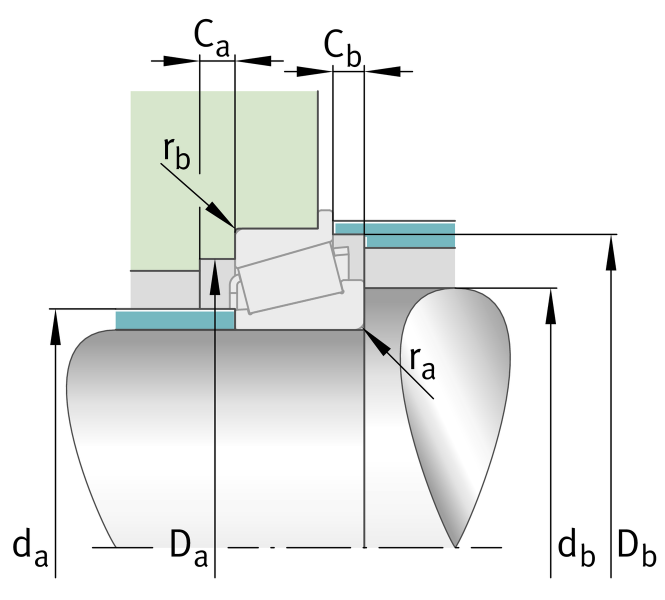

Mounting dimensions
da max
69 mm
Maximum diameter of shaft shoulder
db min
73 mm
Minimum diameter of shaft shoulder
Da min
96 mm
Minimum diameter of housing shoulder
Db min
100 mm
Minimum diameter of housing shoulder
Ca min
4 mm
Minimum axial space
Cb min
5 mm
Minimum axial space
ra max
2.5 mm
Maximum fillet radius of shaft
rb max
2 mm
Maximum fillet radius of housing
