FAG K67885-67820-B

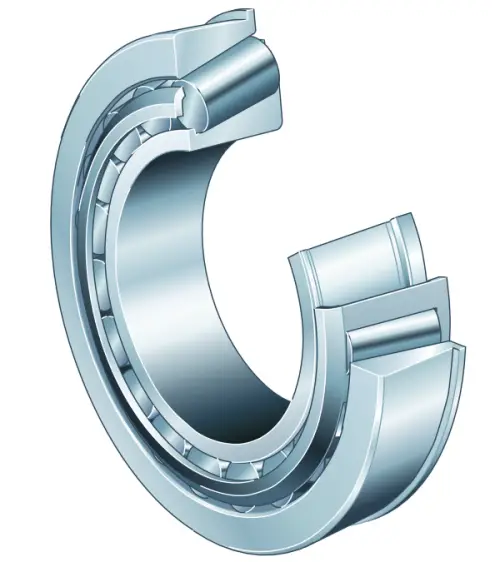

Tapered roller bearings with flange K-Series, in inch sizes, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock

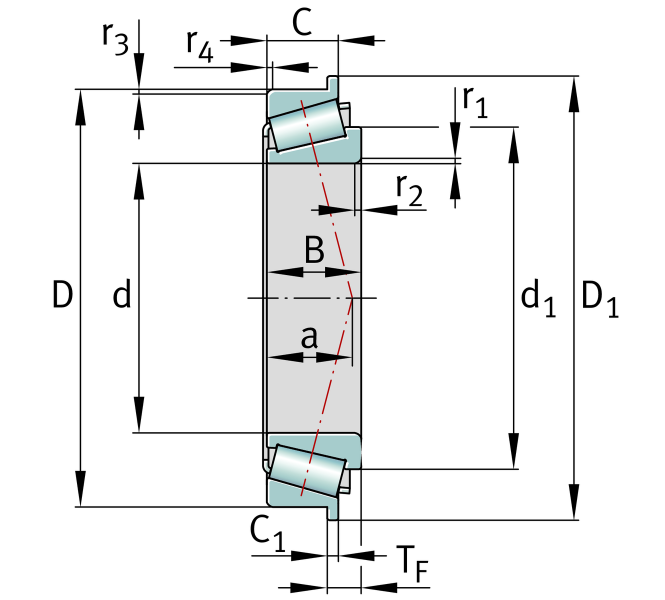

Main Dimensions & Performance Data
d
190.5 mm
Bore diameter
D
266.7 mm
Outside diameter
B
46.833 mm
Width, inner ring
C
38.1 mm
Width, outer ring
TF
16.67 mm
Width assembled flange bearing
Cr
350,000 N
Basic dynamic load rating, radial
C0r
730,000 N
Basic static load rating, radial
Cur
88,000 N
Fatigue load limit, radial
CG
2,440 1/min
Limiting speed
nϑr
1,580 1/min
Thermal speed rating
≈m
8.07 kg
Weight

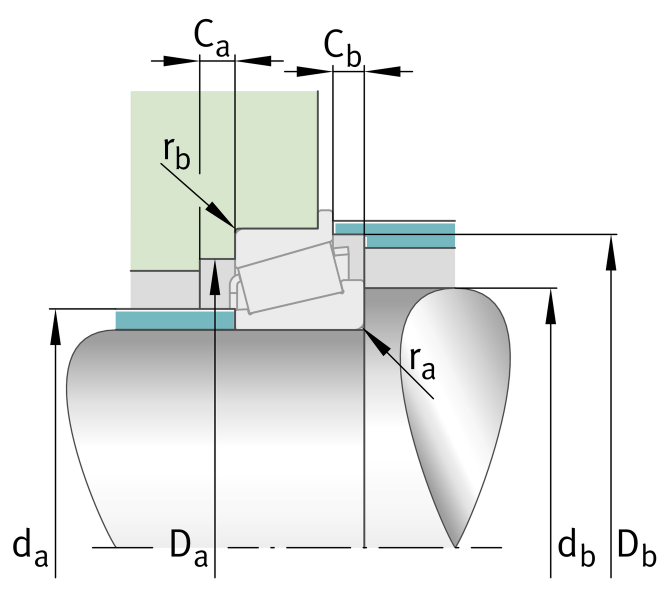

Mounting dimensions
da max
203 mm
Maximum diameter of shaft shoulder
db min
209 mm
Minimum diameter of shaft shoulder
Da min
246 mm
Minimum diameter of housing shoulder
Db min
259 mm
Minimum diameter of housing shoulder
Ca min
5 mm
Minimum axial space
Cb min
10 mm
Minimum axial space
ra max
3.6 mm
Maximum fillet radius of shaft
rb max
3.3 mm
Maximum fillet radius of housing
