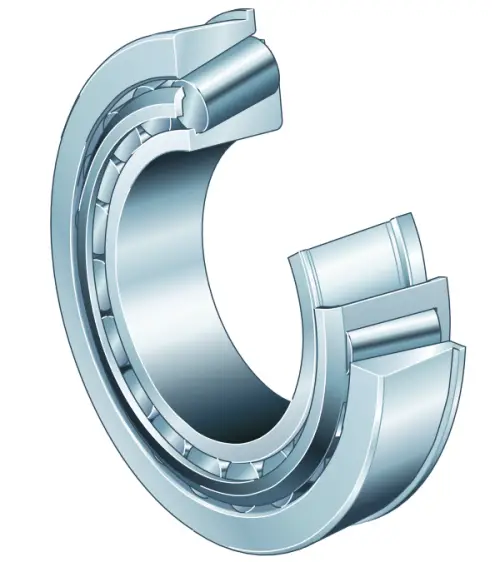

FAG K67981-67920-B
Tapered roller bearings with flange K-Series, in inch sizes, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock

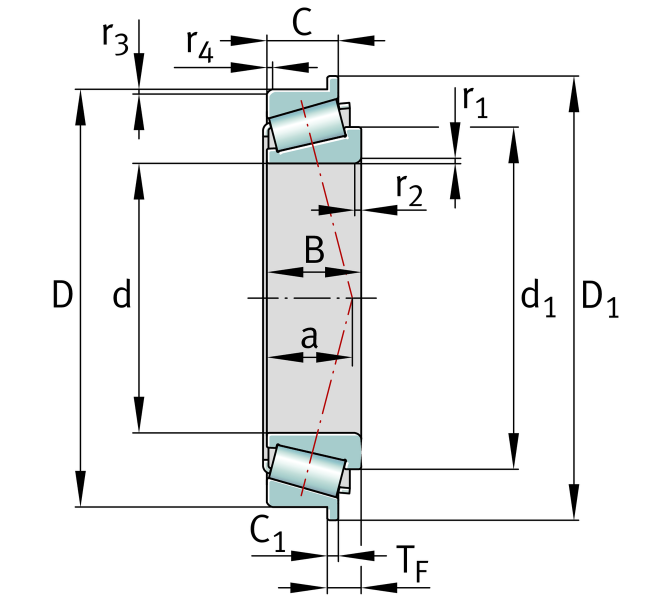

Main Dimensions & Performance Data
d
198.298 mm
Bore diameter
D
282.575 mm
Outside diameter
B
49.212 mm
Width, inner ring
C
36.512 mm
Width, outer ring
TF
16.671 mm
Width assembled flange bearing
Cr
370,000 N
Basic dynamic load rating, radial
C0r
810,000 N
Basic static load rating, radial
Cur
80,000 N
Fatigue load limit, radial
CG
2,290 1/min
Limiting speed
nϑr
1,390 1/min
Thermal speed rating
≈m
9.736 kg
Weight

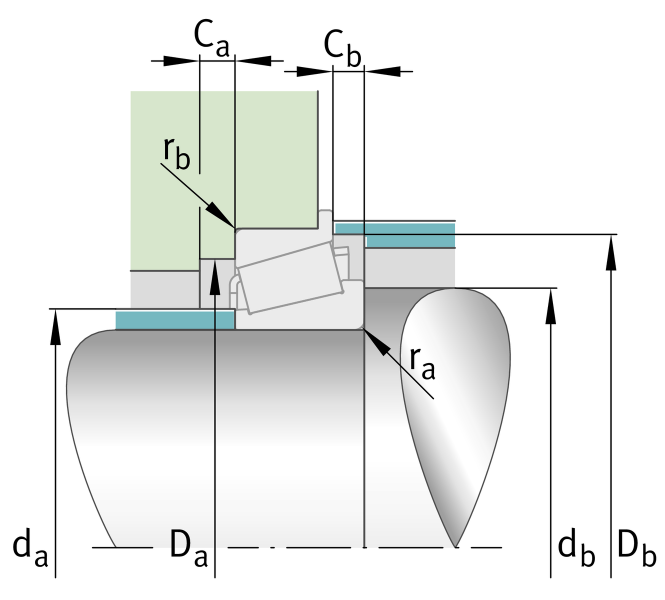

Mounting dimensions
da max
216 mm
Maximum diameter of shaft shoulder
db min
222 mm
Minimum diameter of shaft shoulder
Da min
260 mm
Minimum diameter of housing shoulder
Db min
275 mm
Minimum diameter of housing shoulder
Ca min
5 mm
Minimum axial space
Cb min
8 mm
Minimum axial space
ra max
3.6 mm
Maximum fillet radius of shaft
rb max
3.3 mm
Maximum fillet radius of housing
