FAG KH715348-H715310-B

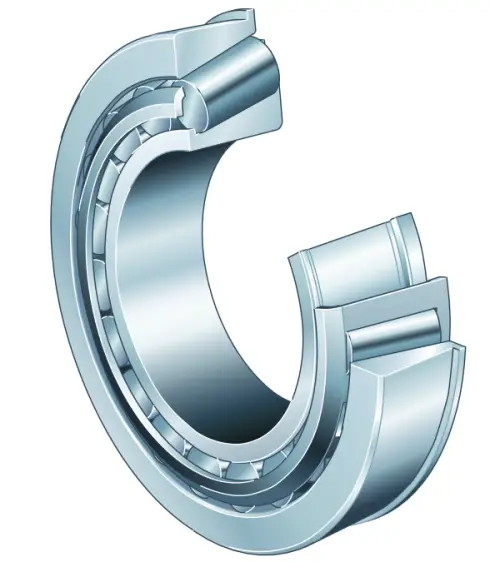

Tapered roller bearings with flange K-Series, in inch sizes, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock

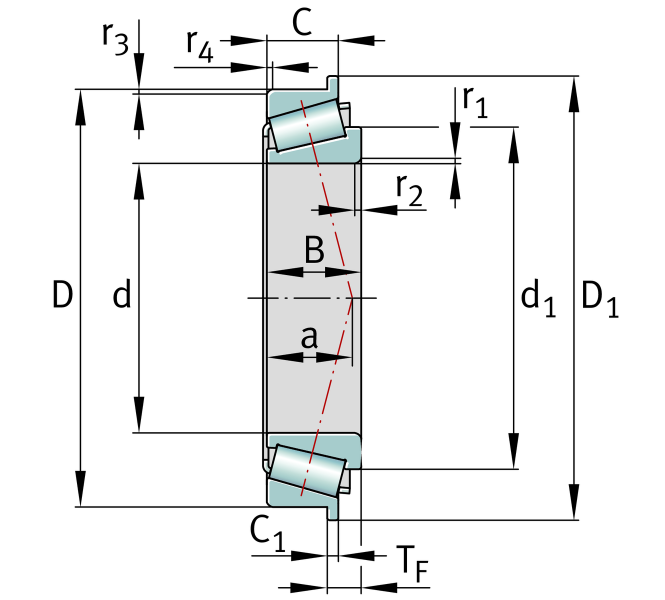

Main Dimensions & Performance Data
d
77.788 mm
Bore diameter
D
139.7 mm
Outside diameter
B
46.038 mm
Width, inner ring
C
36.512 mm
Width, outer ring
TF
17.464 mm
Width assembled flange bearing
Cr
230,000 N
Basic dynamic load rating, radial
C0r
370,000 N
Basic static load rating, radial
Cur
50,000 N
Fatigue load limit, radial
CG
4,900 1/min
Limiting speed
nϑr
3,800 1/min
Thermal speed rating
≈m
3.23 kg
Weight

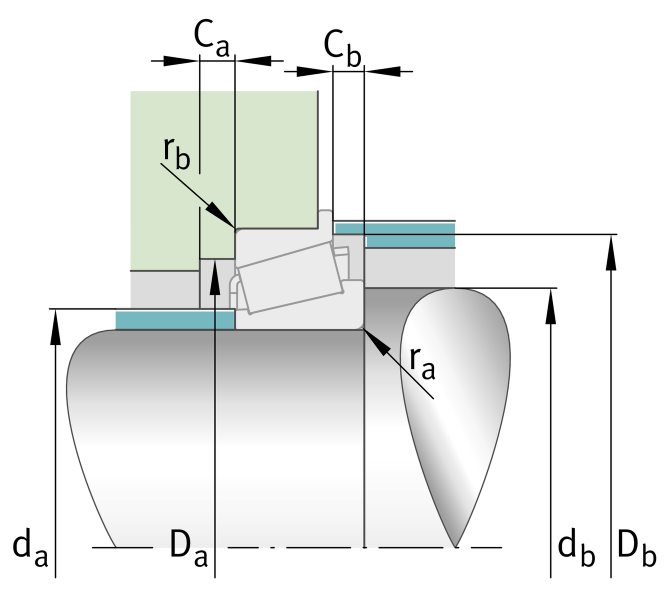

Mounting dimensions
da max
84 mm
Maximum diameter of shaft shoulder
db min
90 mm
Minimum diameter of shaft shoulder
Da min
120 mm
Minimum diameter of housing shoulder
Db min
135 mm
Minimum diameter of housing shoulder
Ca min
5 mm
Minimum axial space
Cb min
7.5 mm
Minimum axial space
ra max
3.6 mm
Maximum fillet radius of shaft
rb max
3.3 mm
Maximum fillet radius of housing
