FAG KHM89448-HM89410-B

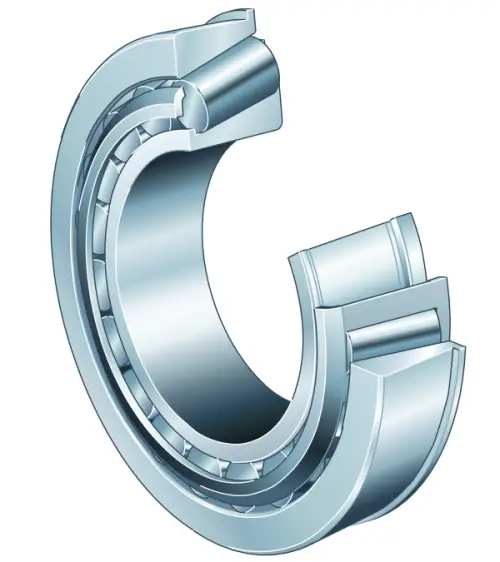

Tapered roller bearings with flange K-Series, in inch sizes, separable, adjusted or in pairs
(BRAND)：FAG
(Availability)：In Stock

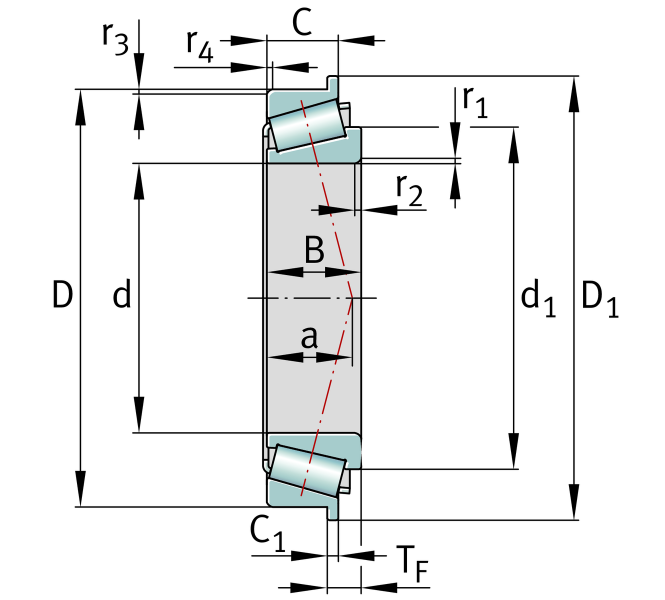

Main Dimensions & Performance Data
d
36.512 mm
Bore diameter
D
76.2 mm
Outside diameter
B
28.575 mm
Width, inner ring
C
23.02 mm
Width, outer ring
TF
11.113 mm
Width assembled flange bearing
Cr
79,000 N
Basic dynamic load rating, radial
C0r
107,000 N
Basic static load rating, radial
Cur
13,700 N
Fatigue load limit, radial
CG
9,400 1/min
Limiting speed
nϑr
7,200 1/min
Thermal speed rating
≈m
0.65 kg
Weight

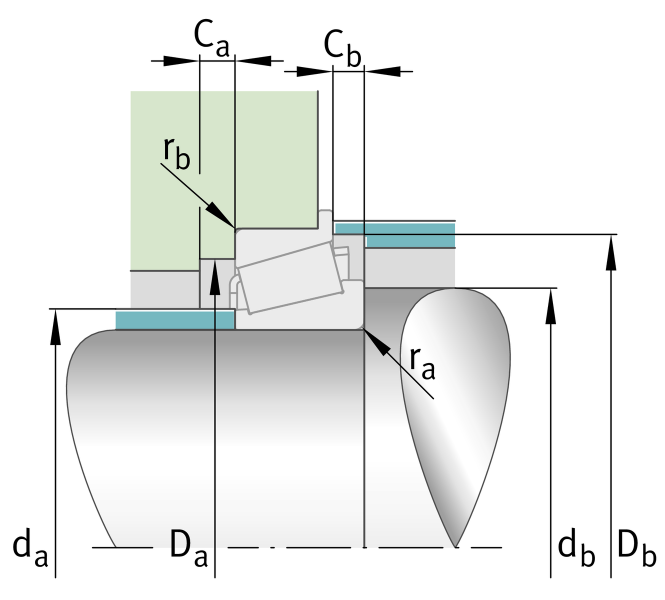

Mounting dimensions
da max
43 mm
Maximum diameter of shaft shoulder
db min
49 mm
Minimum diameter of shaft shoulder
Da min
58 mm
Minimum diameter of housing shoulder
Da max
66 mm
Maximum diameter of housing shoulder
Db min
72 mm
Minimum diameter of housing shoulder
Ca min
3.5 mm
Minimum axial space
Cb min
6 mm
Minimum axial space
ra max
1.5 mm
Maximum fillet radius of shaft
rb max
3.3 mm
Maximum fillet radius of housing
