FAG MB11
Retainers
Tab washers MB, main dimensions to DIN 5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

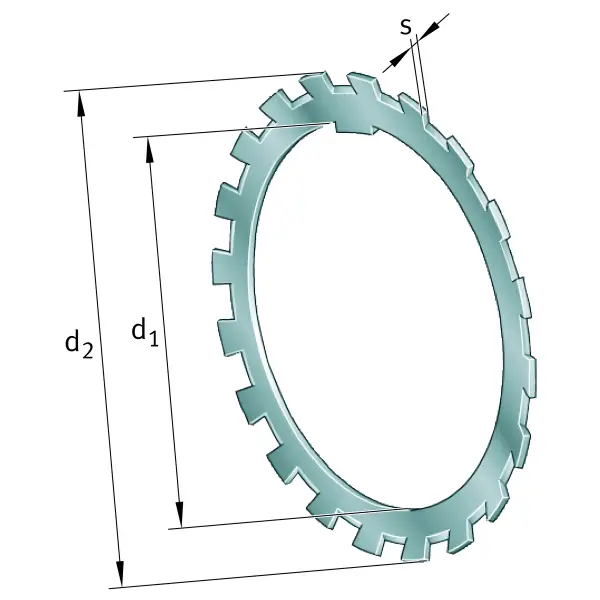

Main Dimensions & Performance Data
d1
55 mm
Bore diameter
d2
81 mm
Outside diameter
s
1.5 mm
Thickness
≈m
24 g
Weight

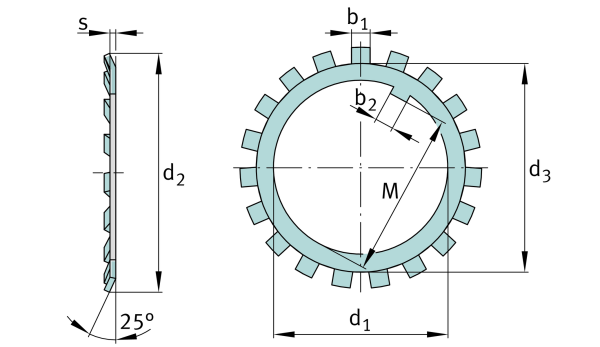

Mounting dimensions
d3
67 mm
Plant diameter outside
b2
8 mm
Distance lug
M
52.5 mm
Distance lug
b1
7 mm
Width lock washer tab
