FAG MB25
Retainers
Tab washers MB, main dimensions to DIN 5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

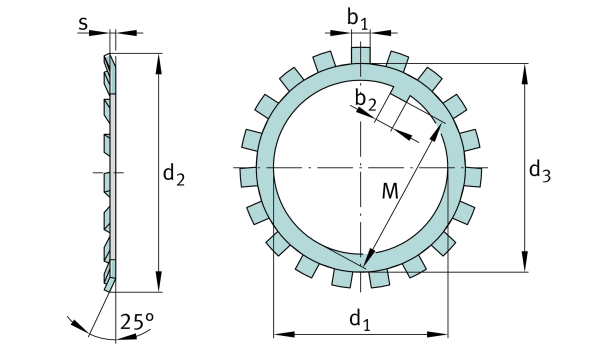

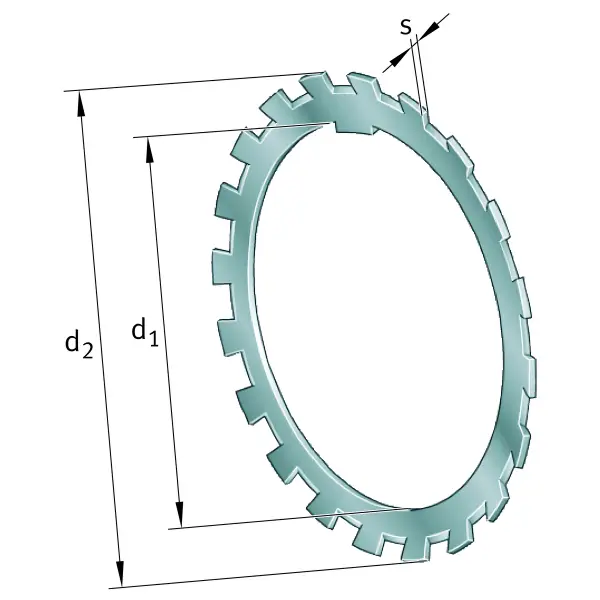

Main Dimensions & Performance Data
d1
125 mm
Bore diameter
d2
170 mm
Outside diameter
s
2 mm
Thickness
≈m
103 g
Weight
Mounting dimensions
d3
148 mm
Plant diameter outside
b2
14 mm
Distance lug
M
120 mm
Distance lug
b1
12 mm
Width lock washer tab
