FAG MB8
Retainers
Tab washers MB, main dimensions to DIN 5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

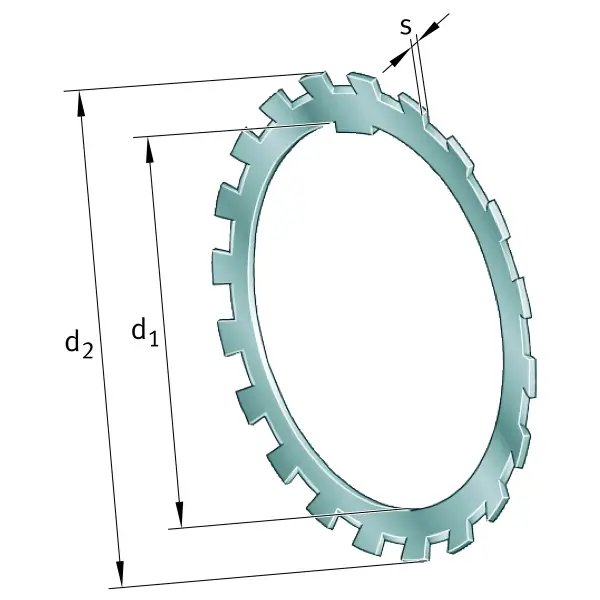

Main Dimensions & Performance Data
d1
40 mm
Bore diameter
d2
62 mm
Outside diameter
s
1.25 mm
Thickness
≈m
12 g
Weight

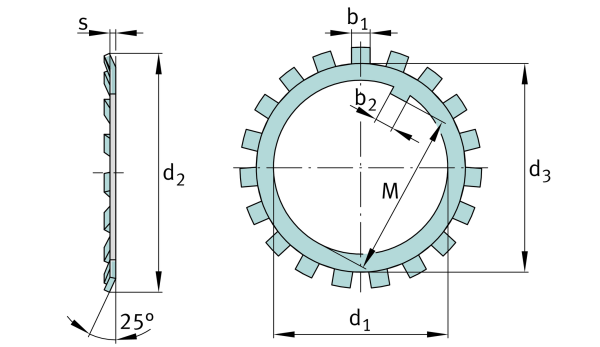

Mounting dimensions
d3
50 mm
Plant diameter outside
b2
6 mm
Distance lug
M
37.5 mm
Distance lug
b1
6 mm
Width lock washer tab
