FAG MB9
Retainers
Tab washers MB, main dimensions to DIN 5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

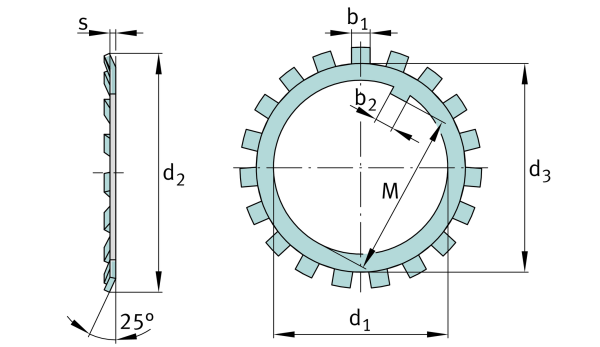

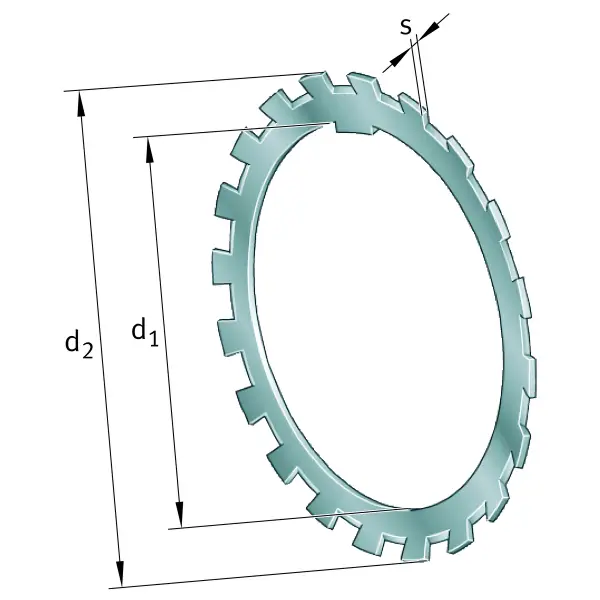

Main Dimensions & Performance Data
d1
45 mm
Bore diameter
d2
69 mm
Outside diameter
s
1.25 mm
Thickness
≈m
14 g
Weight
Mounting dimensions
d3
56 mm
Plant diameter outside
b2
6 mm
Distance lug
M
42.5 mm
Distance lug
b1
6 mm
Width lock washer tab
