FAG MBL24
Retainers
Tab washers MBL, main dimensions to DIN 5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

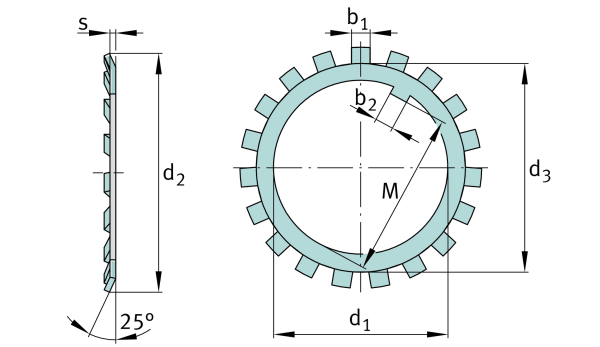

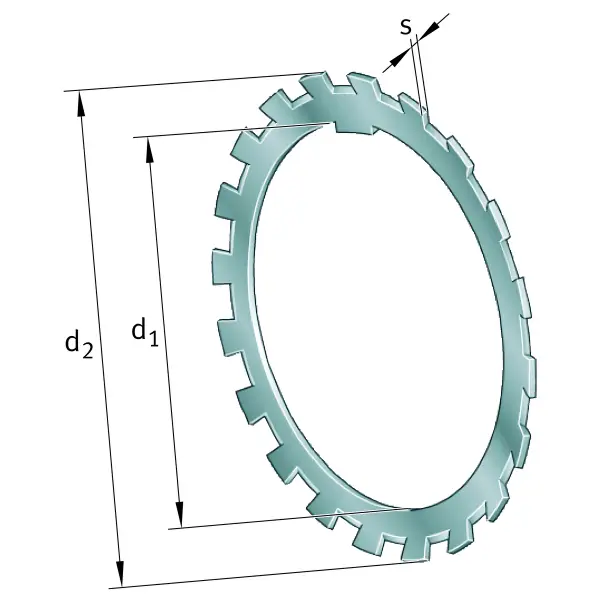

Main Dimensions & Performance Data
d1
120 mm
Bore diameter
d2
151 mm
Outside diameter
s
2 mm
Thickness
≈m
75 g
Weight
Mounting dimensions
d3
135 mm
Plant diameter outside
b2
14 mm
Distance lug
M
115 mm
Distance lug
b1
12 mm
Width lock washer tab
