FAG MBL38
Retainers
Tab washers MBL, main dimensions to DIN 5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

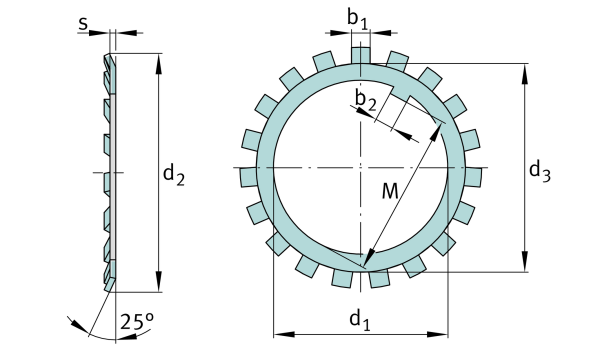

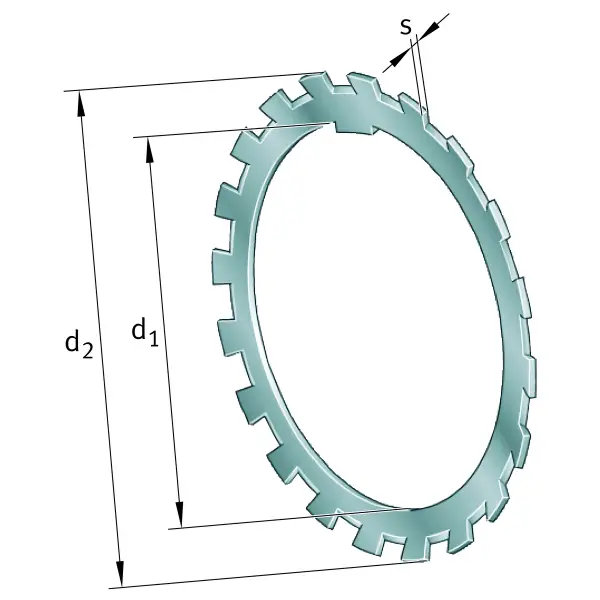

Main Dimensions & Performance Data
d1
190 mm
Bore diameter
d2
231 mm
Outside diameter
s
2.5 mm
Thickness
≈m
207 g
Weight
Mounting dimensions
d3
210 mm
Plant diameter outside
b2
20 mm
Distance lug
M
184 mm
Distance lug
b1
16 mm
Width lock washer tab
