FAG MBL40
Retainers
Tab washers MBL, main dimensions to DIN 5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

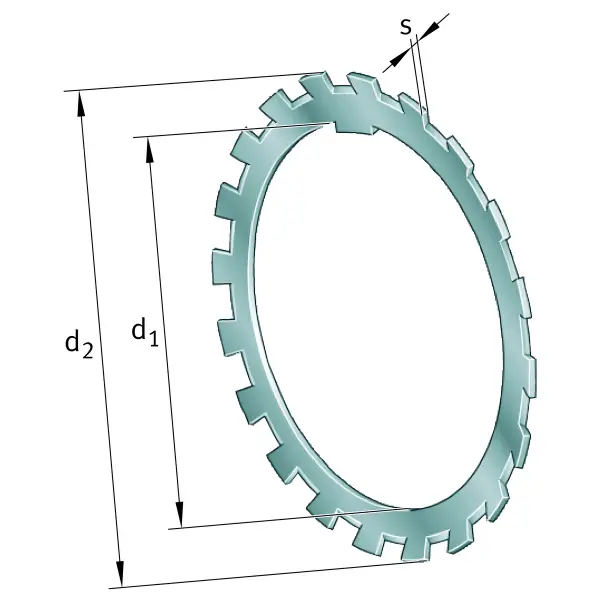

Main Dimensions & Performance Data
d1
200 mm
Bore diameter
d2
248 mm
Outside diameter
s
2.5 mm
Thickness
≈m
248 g
Weight

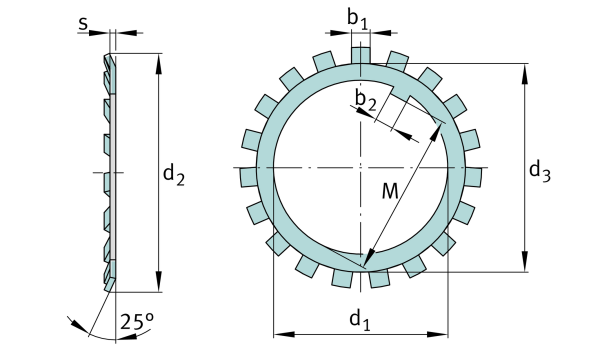

Mounting dimensions
d3
222 mm
Plant diameter outside
b2
20 mm
Distance lug
M
194 mm
Distance lug
b1
18 mm
Width lock washer tab
