FAG MS30/670
Retainers
Securing plate MS, locknut, DIN5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

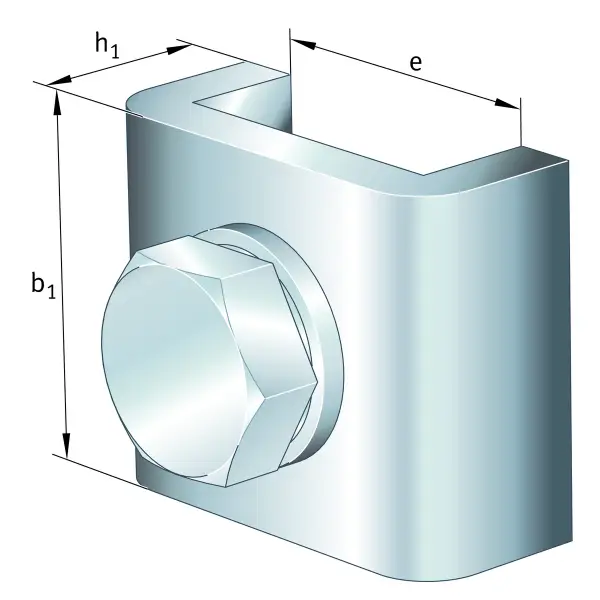

Main Dimensions & Performance Data
b1
45 mm
Length retaining ring
e
39 mm
Width inner retaining ring
h1
21 mm
Hight retaining ring
≈m
272 g
Weight

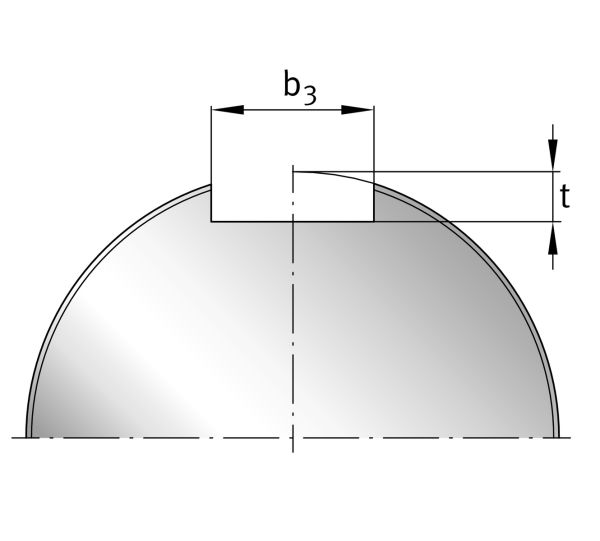

Mounting dimensions
b3
47 mm
Width retaining slot
t
14 mm
Hight retaining slot
