FAG MS30/750
Retainers
Securing plate MS, locknut, DIN5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

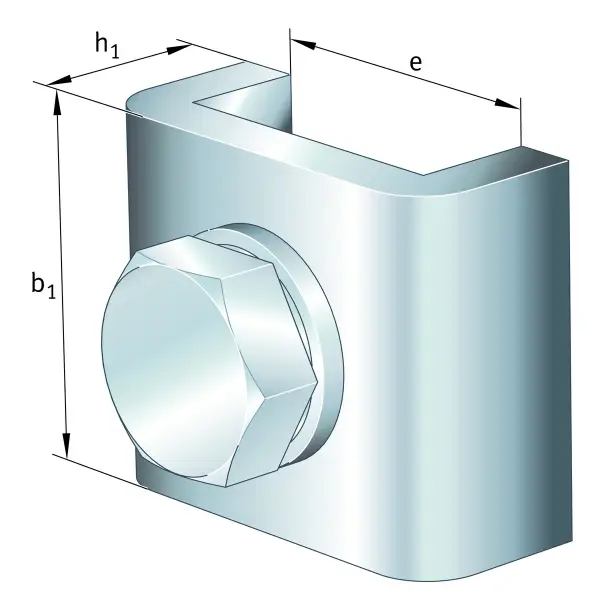

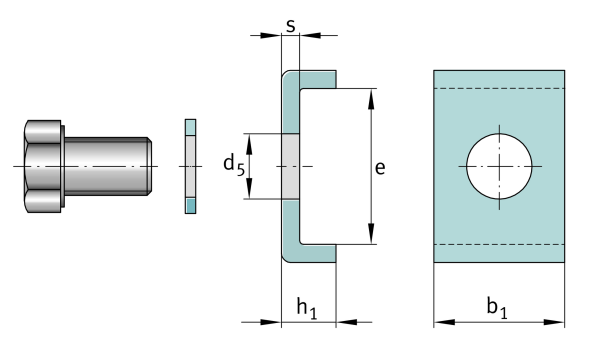

Main Dimensions & Performance Data
b1
55 mm
Length retaining ring
e
39 mm
Width inner retaining ring
h1
21 mm
Hight retaining ring
≈m
320 g
Weight

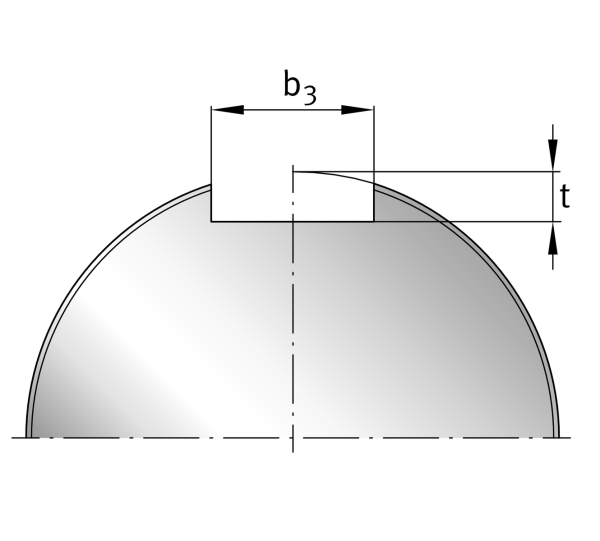

Mounting dimensions
b3
57 mm
Width retaining slot
t
15 mm
Hight retaining slot
