FAG MS3044
Retainers

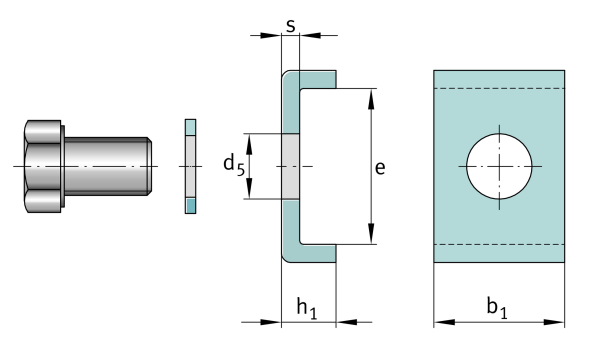

Securing plate MS, locknut, DIN5406
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

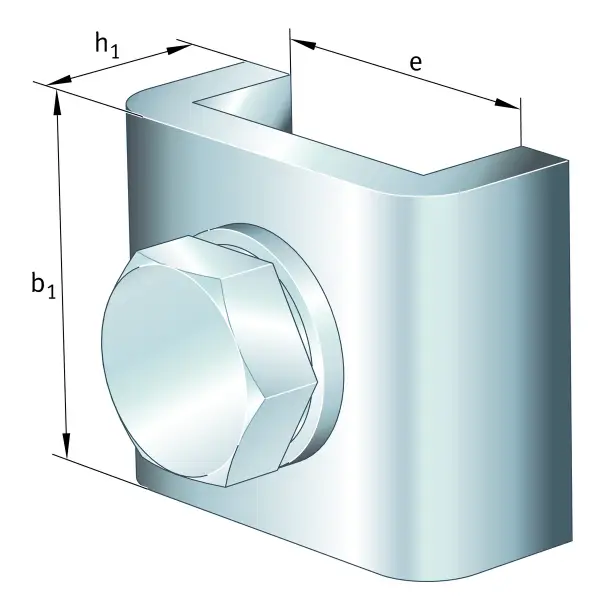

Main Dimensions & Performance Data
b1
20 mm
Length retaining ring
e
13.5 mm
Width inner retaining ring
h1
12 mm
Hight retaining ring
≈m
26 g
Weight

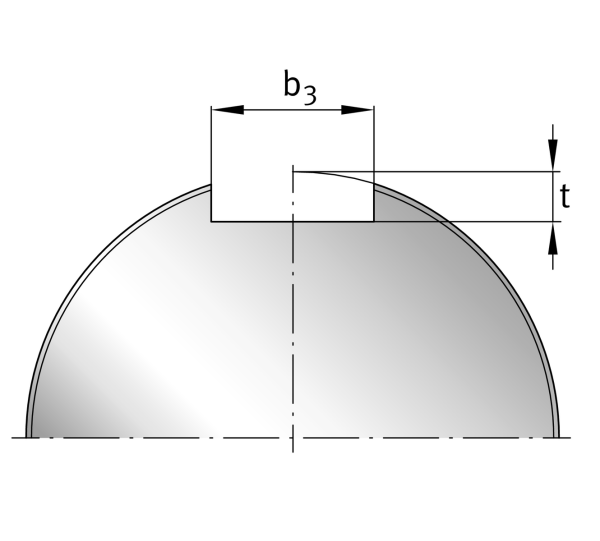

Mounting dimensions
b3
22 mm
Width retaining slot
t
9 mm
Hight retaining slot
