FAG N205-E-XL-M1-C3
Cylindrical roller bearing N2..-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：FAG
(Availability)：In Stock

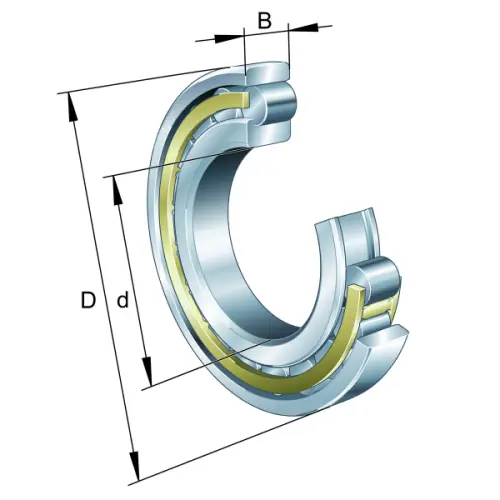

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width
Cr
34,500 N
Basic dynamic load rating, radial
C0r
27,500 N
Basic static load rating, radial
Cur
4,400 N
Fatigue load limit, radial
nG Grease
22,400 1/min
Limiting speed for grease lubrication
≈m
149.42 g
Weight
Mounting dimensions
da
29 mm
Diameter shaft shoulder
Da
46 mm
Diameter of housing shoulder
ra1 max
0.6 mm
Maximum recess radius
