FAG N208-E-XL-M1
Cylindrical roller bearing N2..-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：FAG
(Availability)：In Stock

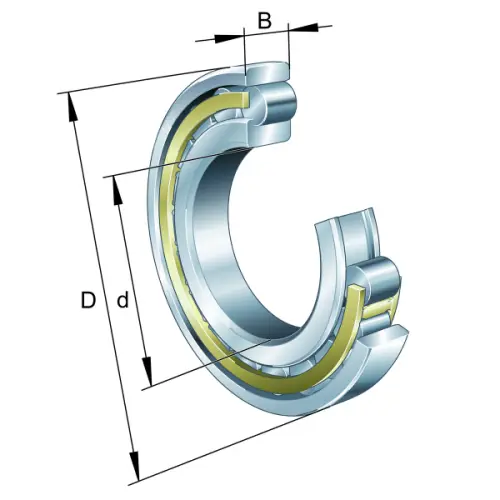

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
80 mm
Outside diameter
B
18 mm
Width
Cr
63,000 N
Basic dynamic load rating, radial
C0r
53,000 N
Basic static load rating, radial
Cur
8,400 N
Fatigue load limit, radial
nG Grease
14,200 1/min
Limiting speed for grease lubrication
≈m
0.421 kg
Weight
Mounting dimensions
da
47 mm
Diameter shaft shoulder
Da
73 mm
Diameter of housing shoulder
