FAG N209-E-XL-M1
Cylindrical roller bearing N2..-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：FAG
(Availability)：In Stock

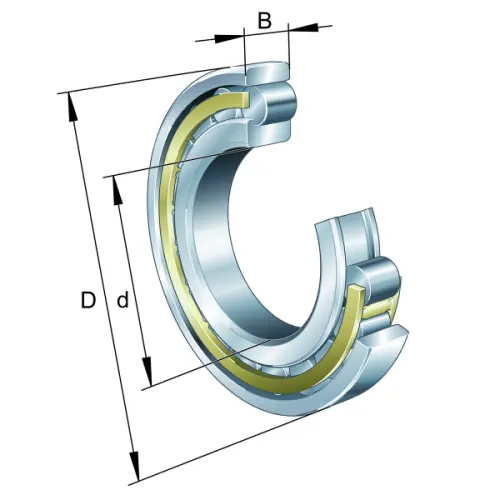

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
85 mm
Outside diameter
B
19 mm
Width
Cr
76,000 N
Basic dynamic load rating, radial
C0r
68,000 N
Basic static load rating, radial
Cur
11,000 N
Fatigue load limit, radial
≈m
499 g
Weight
Mounting dimensions
Da
78 mm
Diameter of housing shoulder
