FAG N214-E-XL-TVP2-F1-J20AA-C4
Cylindrical Roller Bearings

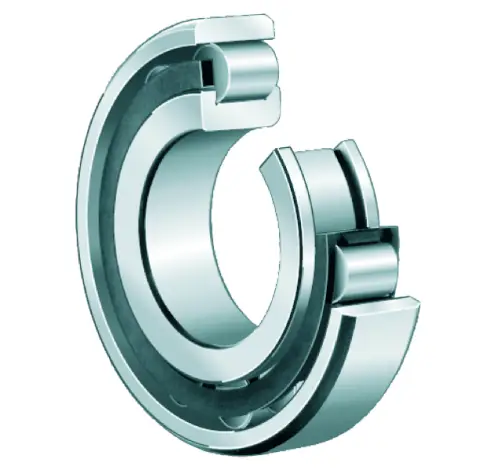

Cylindrical roller bearing N2..-E-TVP, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
125 mm
Outside diameter
B
24 mm
Width
Cr
242,000 N
Basic dynamic load rating, radial
C0r
222,000 N
Basic static load rating, radial
Cur
40,500 N
Fatigue load limit, radial
nG Grease
6,600 1/min
Limiting speed for grease lubrication
nG Oil
7,800 1/min
Limiting speed for oil lubrication
≈m
1.14 kg
Weight
Mounting dimensions
da
79 mm
Diameter shaft shoulder
Da
116 mm
Diameter of housing shoulder
ra1 max
1.5 mm
Maximum recess radius
