FAG N230-E-XL-M1-C3
Cylindrical roller bearing N2..-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：FAG
(Availability)：In Stock

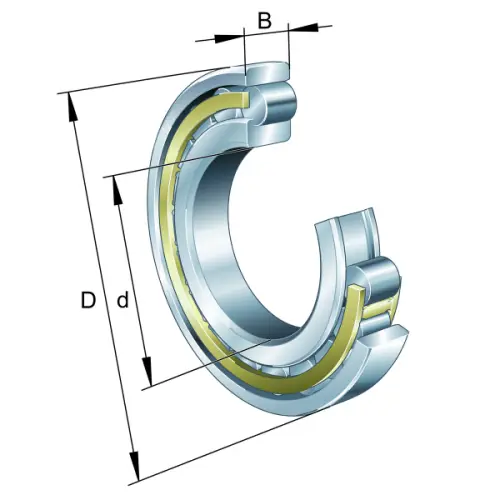

Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
270 mm
Outside diameter
B
45 mm
Width
Cr
520,000 N
Basic dynamic load rating, radial
C0r
590,000 N
Basic static load rating, radial
Cur
90,000 N
Fatigue load limit, radial
nG Grease
3,850 1/min
Limiting speed for grease lubrication
nG Oil
4,550 1/min
Limiting speed for oil lubrication
≈m
12.196 kg
Weight
Mounting dimensions
da
164 mm
Diameter shaft shoulder
Da
256 mm
Diameter of housing shoulder
ra1 max
2.5 mm
Maximum recess radius
