FAG N2315-E-XL-M1
Cylindrical roller bearing N2..-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：FAG
(Availability)：In Stock

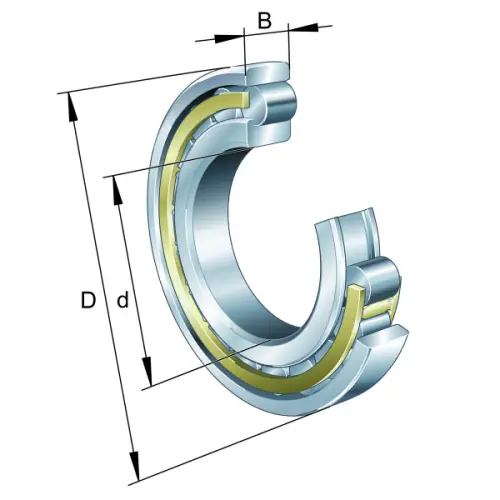

Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
160 mm
Outside diameter
B
55 mm
Width
Cr
390,000 N
Basic dynamic load rating, radial
C0r
395,000 N
Basic static load rating, radial
Cur
71,000 N
Fatigue load limit, radial
≈m
5.4 kg
Weight
Mounting dimensions
da
87 mm
Diameter shaft shoulder
Da
148 mm
Diameter of housing shoulder
148
Diameter of housing shoulder tolerance
ra1 max
2.1 mm
Maximum recess radius
