FAG NU238-E-M1-J20AA-C3
Cylindrical Roller Bearings
Cylindrical roller bearing NU..-E-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

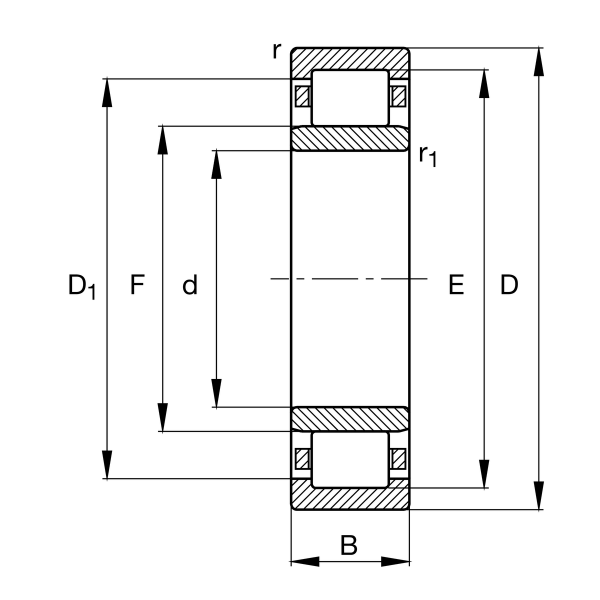

Main Dimensions & Performance Data
d
190 mm
Bore diameter
D
340 mm
Outside diameter
B
55 mm
Width
Cr
680,000 N
Basic dynamic load rating, radial
C0r
930,000 N
Basic static load rating, radial
Cur
83,000 N
Fatigue load limit, radial
CG
3,050 1/min
Limiting speed
nϑr
1,720 1/min
Reference speed
≈m
22.6 kg
Weight
Mounting dimensions
da min
207 mm
Minimum diameter shaft shoulder
da max
227 mm
Maximum diameter of shaft shoulder
db min
234 mm
Minimum shaft shoulder
Da max
323 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
ra1 max
3 mm
Maximum recess radius
