FAG N244-E-M1-C3
Cylindrical roller bearing N2..-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：FAG
(Availability)：In Stock

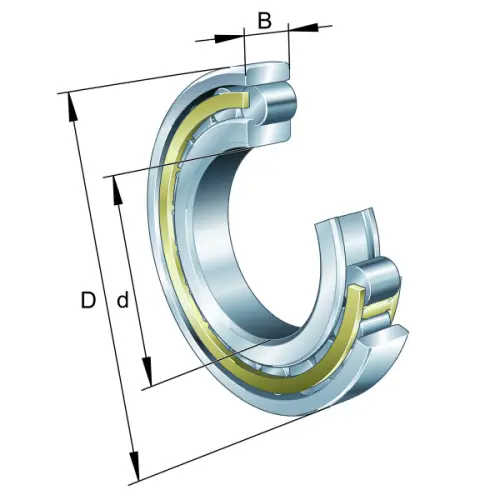

Main Dimensions & Performance Data
d
220 mm
Bore diameter
D
400 mm
Outside diameter
B
65 mm
Width
Cr
950,000 N
Basic dynamic load rating, radial
C0r
1,330,000 N
Basic static load rating, radial
Cur
150,000 N
Fatigue load limit, radial
≈m
37.6 kg
Weight
Mounting dimensions
da
237 mm
Diameter shaft shoulder
Da
383 mm
Diameter of housing shoulder
ra1 max
4 mm
Maximum recess radius
