FAG N304-E-XL-M1
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

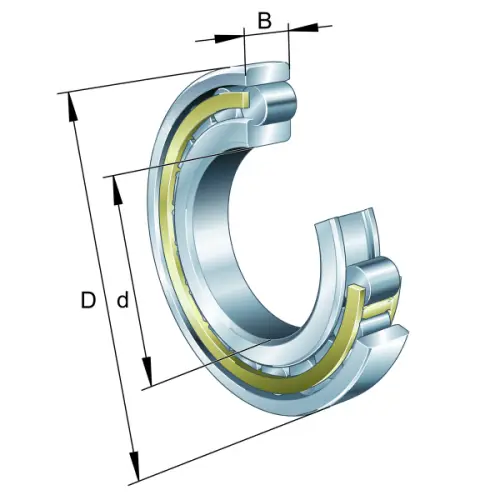

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
52 mm
Outside diameter
B
15 mm
Width
Cr
37,500 N
Basic dynamic load rating, radial
C0r
27,000 N
Basic static load rating, radial
Cur
3,850 N
Fatigue load limit, radial
≈m
175 g
Weight
Mounting dimensions
Da
45 mm
Diameter of housing shoulder
