FAG N306-E-XL-M1-C3
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

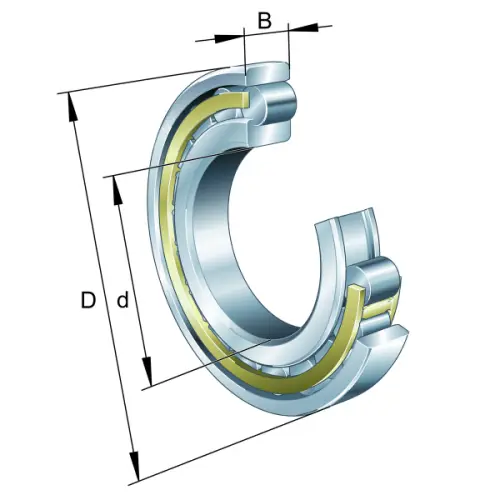

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
72 mm
Outside diameter
B
19 mm
Width
Cr
61,000 N
Basic dynamic load rating, radial
C0r
48,000 N
Basic static load rating, radial
Cur
7,700 N
Fatigue load limit, radial
nG Grease
16,100 1/min
Limiting speed for grease lubrication
≈m
411.42 g
Weight
Mounting dimensions
da
37 mm
Diameter shaft shoulder
Da
65 mm
Diameter of housing shoulder
ra1 max
1 mm
Maximum recess radius
