FAG N306-E-XL-TVP2

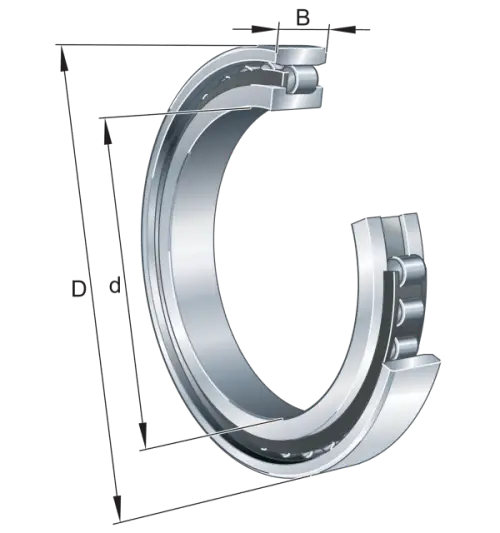

Cylindrical roller bearing N3..-E-TVP2, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
72 mm
Outside diameter
B
19 mm
Width
Cr
61,000 N
Basic dynamic load rating, radial
C0r
48,000 N
Basic static load rating, radial
Cur
7,900 N
Fatigue load limit, radial
nG Grease
12,100 1/min
Limiting speed for grease lubrication
nG Oil
14,200 1/min
Limiting speed for oil lubrication
≈m
0.359 kg
Weight
Mounting dimensions
da
37 mm
Diameter shaft shoulder
Da
65 mm
Diameter of housing shoulder
ra1 max
1 mm
Maximum recess radius
