FAG N308-E-XL-M1
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

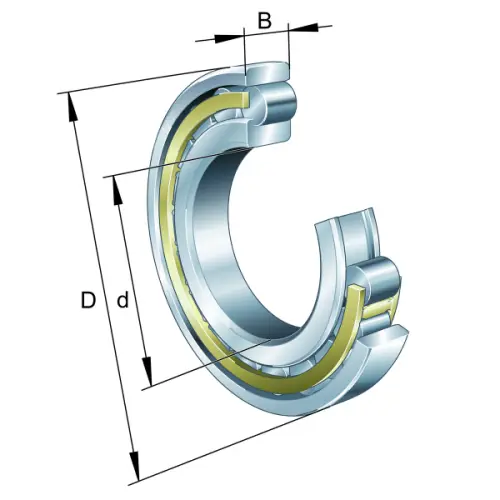

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
90 mm
Outside diameter
B
23 mm
Width
Cr
96,000 N
Basic dynamic load rating, radial
C0r
79,000 N
Basic static load rating, radial
Cur
13,600 N
Fatigue load limit, radial
≈m
0.723 kg
Weight
Mounting dimensions
da
49 mm
Diameter shaft shoulder
Da
81 mm
Diameter of housing shoulder
ra1 max
1.5 mm
Maximum recess radius
