FAG N309-E-XL-M1
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

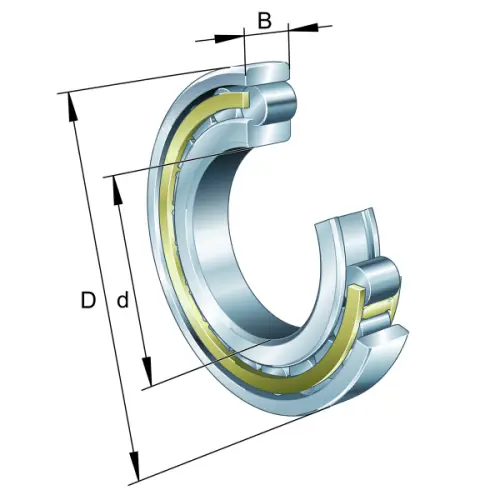

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
100 mm
Outside diameter
B
25 mm
Width
Cr
116,000 N
Basic dynamic load rating, radial
C0r
99,000 N
Basic static load rating, radial
Cur
17,300 N
Fatigue load limit, radial
≈m
0.98 kg
Weight
Mounting dimensions
da
54 mm
Diameter shaft shoulder
54
Diameter shaft shoulder tolerance
Da
91 mm
Diameter of housing shoulder
91
Diameter of housing shoulder tolerance
