FAG N312-E-XL-M1
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

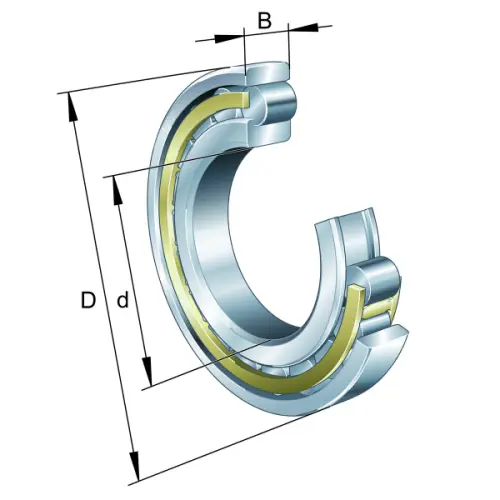

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
130 mm
Outside diameter
B
31 mm
Width
Cr
177,000 N
Basic dynamic load rating, radial
C0r
157,000 N
Basic static load rating, radial
Cur
28,500 N
Fatigue load limit, radial
nG Grease
8,400 1/min
Limiting speed for grease lubrication
≈m
2 kg
Weight
Mounting dimensions
Da
118 mm
Diameter of housing shoulder
ra1 max
2 mm
Maximum recess radius
