FAG N320-E-XL-M1
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

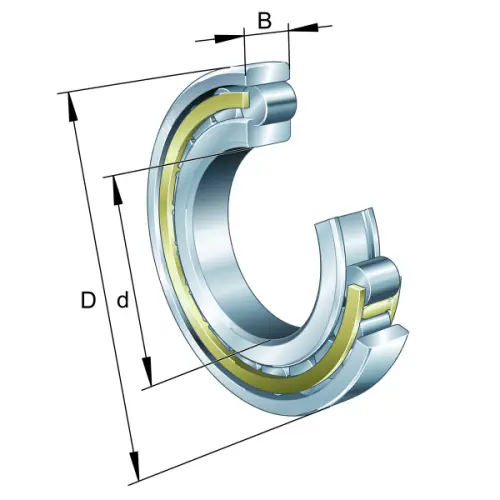

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
215 mm
Outside diameter
B
47 mm
Width
Cr
450,000 N
Basic dynamic load rating, radial
C0r
425,000 N
Basic static load rating, radial
Cur
72,000 N
Fatigue load limit, radial
nG Grease
4,700 1/min
Limiting speed for grease lubrication
nG Oil
5,600 1/min
Limiting speed for oil lubrication
≈m
8.355 kg
Weight
Mounting dimensions
da
114 mm
Diameter shaft shoulder
Da
201 mm
Diameter of housing shoulder
ra1 max
2.5 mm
Maximum recess radius
